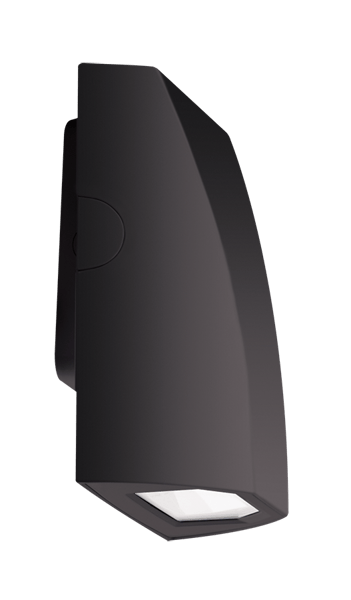

RAB SLIM26/PC Wallpack With 120 VAC Button Photocell, LED Lamp, 29 W Fixture, 120 VAC, Bronze Housing
RAB SLIM26/PC Wallpack With 120 VAC Button Photocell, LED Lamp, 29 W Fixture, 120 VAC, Bronze Housing
SKU: RABSLIM26/PC
Manufacturer Part Number: SLIM26/PC
UPC: 019813040936
Documents
Short Description
Features
- Ultra efficient and deliver impressive light distribution with a compact low-profile design that's super easy to install as a down light or uplight
- Precision die-cast aluminum housing
- High temperature silicone gaskets
- Specular thermoplastic reflector
- Recommended mounting height up to 22 ft
- Superior heat sinking with internal air-flow fins
- Heavy duty mounting bracket with hinged housing for easy installation
- Mercury and UV free
- -40 to 40 deg C temperature rating
- Full cutoff, fully shielded led wallpack
- Can be used as a downlight or uplight
- Contractor friendly features for easy installation
- 97 LPW efficacy
- High temperature silicone gasket
- Our environmentally friendly polyester powder coatings are formulated for high-durability and long lasting color, and contains no VOC or toxic heavy metals
- Tempered glass lens
- 5100 K (Cool) color temperature
Specification
| Housing Finish | Polyester Powder Coated |
|---|---|
| Housing Material | Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 26 W |
| Lens Type | Glass |
| Light Color | Bronze |
| Lumens | 2648 Lumens |
| Mounting Type | Wall |
| Series | Slim |
| Type | Constant Current |
| Voltage Rating | 120 VAC |
| Application | Wet Location |
| Standard & Approvals | UL Listed, ADA Approved, LM-79, LM-80 Testing, Dark Sky Approved |
| Amperage Rating | 0.27 A |
| Dimensions | 8.75 in H x 6.5 in W x 3.9 in D |
| Average Life | 100000 hr |
| Color Rendering Index (CRI) | 67 |
| Color Temperature | 5100 K |
| Enclosure Type | IP66 |
| Fixture Wattage | 29 W |
| Includes | 120 V Button Photocell |
