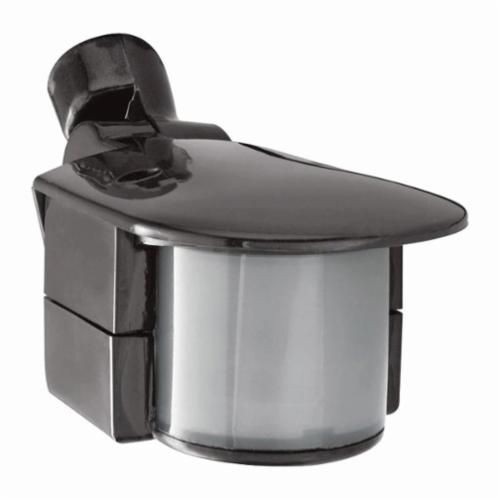

RAB SMS500 Mini Non-Fixture Outdoor Motion Sensor, 120 VAC, Photoelectric Sensor, 180 deg Viewing, Wall Mount
RAB SMS500 Mini Non-Fixture Outdoor Motion Sensor, 120 VAC, Photoelectric Sensor, 180 deg Viewing, Wall Mount
SKU: RABSMS500
Manufacturer Part Number: SMS500
UPC: 019813760506
Documents
Features
- Surge protected
- 180 detection pattern
- Quick installation with 5 second test time and auto test logic
- LED "on guard" indicator
- Protected manual override with auto reset after 8 hours or at dawn
- Adjustable ambient light sensing
- Auto mode starts after 4 minutes of testing, no adjustment needed
- Time, ambient light and sensitivity adjustments
- LED glows red day and night for "on guard" deterrence LED detection indicator
- Withstands up to 3000 volts
- Relay On/Off model switches 240 W when lights are mounted to sensor, 500 W incandescent or 240 W fluorescent of remotely mounted lighting at 120 V
- Compatible with most electronic ballasts, not compatible with instant start ballasts
- Double flip wall switch logic prevents activation by brief power outages, resets after 8 hours, no extra wiring needed
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- 500 W at 120 V incandescent watts switched, 250 W at 120 V fluorescent watts switched
- Deactivates lights during daylight, fully adjustable for 24 hour operation or custom applications
Specification
| Lamp Type | Incandescent/Fluorescent |
|---|---|
| Material | Polycarbonate |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Bronze |
| Viewing Angle | 180 deg |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL Listed |
| Amperage Rating | 5 A |
| Application | For outdoor and wet locations |
| Type | Mini |
| Time Delay | 5 sec to 15 min |
| Response Frequency | 60 Hz |
| Power Rating | 500/250 W |
| Dimensions | 1-5/8 in H x 4 in D |
| Catalog ID | RABSMS500 |
