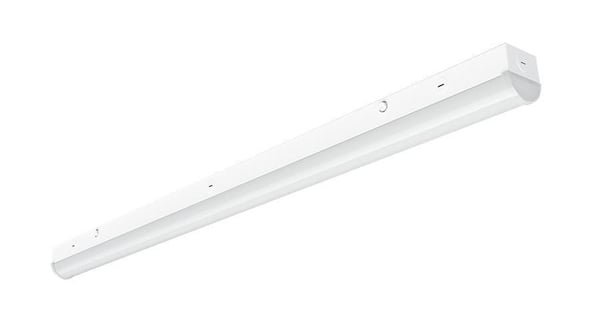

RAB SR4 SR Field-Adjustable Strip Light, LED Lamp, 20.1 to 42.6 W Fixture, 120, 208, 240, 277 V, White Housing
RAB SR4 SR Field-Adjustable Strip Light, LED Lamp, 20.1 to 42.6 W Fixture, 120, 208, 240, 277 V, White Housing
SKU: RABSR4
Manufacturer Part Number: SR4
UPC: 192552026352
Features
- 50,000 hr LED lifespan
- 120-277V standard
- 0-10V dimming standard
Specification
| Series | SR |
|---|---|
| Type | Field-Adjustable |
| Voltage Rating | 120, 208, 240, 277 V |
| Application | For Indoor application |
| Standard & Approvals | DLC Premium Listed, ANSI C78.377-2017, BAA Compliant, RoHS Compliant, UL Listed |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 50000 hr |
| Color Temperature | 5000, 4000, 3500 K |
| Housing Finish | White |
| Housing Material | Iron |
| Lamp Type | LED |
| Lens Type | Polycarbonate |
| Lighting Technology | Green |
| Light Output | 140.2 to 163.7 Lumens/W |
| Lumens | 3155 to 6174 Lumens |
| Mounting Type | J-Box |
| Lamp Wattage | 40, 30, 20 W |
| Fixture Wattage | 20.1 to 42.6 W |
| Dimensions | 4 ft L |
| Color Rendering Index (CRI) | 83 to 84 |
| Catalog ID | RABSR4 |
| Amperage Rating | 0.07, 0.08, 0.10, 0.11, 0.13, 0.14, 0.17, 0.19, 0.25, 0.33 A |
