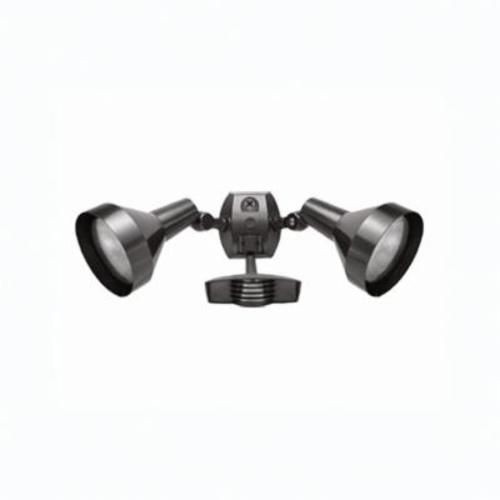

RAB STL110H Stealth® 110 Outdoor Sensor Light, (2) PAR38 Incandescent Lamp, 1000 W Fixture, 120 VAC, Aluminum Housing
RAB STL110H Stealth® 110 Outdoor Sensor Light, (2) PAR38 Incandescent Lamp, 1000 W Fixture, 120 VAC, Aluminum Housing
SKU: RABSTL110H
Manufacturer Part Number: STL110H
UPC: 019813760551
Documents
Features
- 1000 W incandescent at 120 V, 8 A switching capacity
- Protected manual override with auto reset
- Radio frequency immunity
- 6000 volt surge protection
- 60 hz frequency
- Color matched vandal-resistant lens and grill
- Two flip logic prevents activation by momentary power outages
- Override resets to auto after 6 hours or at dawn, no extra wiring needed
- Can be wired in parallel
- Bronze finish
- Adjustable from 100 to 30% wide sensitivity control
- LED detection & "on guard" indicator
- Deactivates lights during daylight, fully adjustable for 24 hour operation or custom applications
- Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures temperature compensation
- Circuits fully shielded for maximum radio frequency immunity
- 5-5/8 in Dia x 7 in H lamp dimension
- Minimizes false triggers, 1/2 in NPS threaded
- Keeps sensing pattern level for fast, error-free installation horizontal lock, no-tool joints
- Precision die-cast aluminum, 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
- Customized press apply lens mask included to reduce coverage easily
Specification
| Housing Material | Aluminum |
|---|---|
| Lamp Base | Medium |
| Lamp Type | PAR38 |
| Lamp Wattage | 150 W |
| Lens Type | Vandal Resistant |
| Number of Lamps | 2 |
| Sensing Angle | 110 deg |
| Series | Stealth |
| Time Delay | 5 sec to 12 min |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL Listed |
| Dimensions | 17-1/2 in L x 4-5/8 in W |
| Application | For Wet Locations |
| Fixture Wattage | 1 W |
| Amperage Rating | 8 A |
