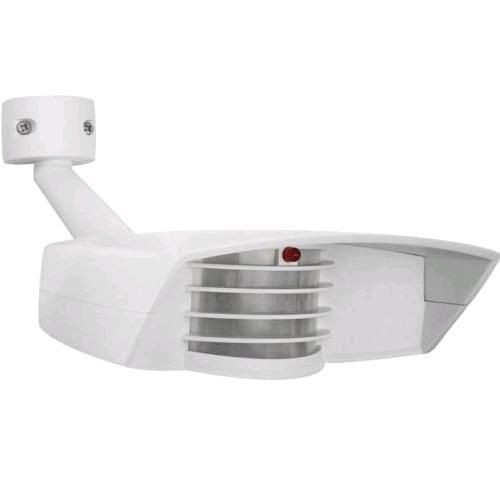

RAB STL110W Non-Fixture Stealth Sensor, 120 VAC, Photoelectric Sensor, 110 deg Viewing, Threaded Mount
RAB STL110W Non-Fixture Stealth Sensor, 120 VAC, Photoelectric Sensor, 110 deg Viewing, Threaded Mount
SKU: RABSTL110W
Manufacturer Part Number: STL110W
UPC: 019813601809
Documents
Features
- Temperature compensation
- Radio frequency immunity
- 6000 V surge protection
- LED detection and "on guard" indicator
- Color matched vandal resistant lens and grill
- Protected manual override with auto reset
- Can be wired in parallel
- Shows when sensor is detecting in daytime and glows red at night for "on guard" deterrence LED detection indicator
- Dark lens with bronze units, white lens with white units color matched lens
- Withstands up to 6000 volts
- 1000 W incandescent at 120 V, 8 A switching capacity
- Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hour operation or custom applications
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Adjustable from 100 to 30 percent detector sensitivity
- 10 ft recommended mounting height, 50 ft maximum recommended look-out zone
- Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
- Keeps sensing pattern level for fast, error-free installation horizontal lock, no-tool joints
- Precision die cast aluminum 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
Specification
| Lamp Type | Incandescent |
|---|---|
| Material | Aluminum |
| Mounting Type | 1/2 in NPS Threaded |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | RABSTL110W |
| Color | White |
| Dimensions | 3-1/2 in H x 5 in W x 5 in D |
| Power Rating | 1 W |
| Response Frequency | 60 Hz |
| Time Delay | 5 sec to 12 min |
| Viewing Angle | 110 deg |
| Voltage Rating | 120 VAC |
| Application | For outdoor and wet locations |
| Standard & Approvals | UL Listed |
| Amperage Rating | 8 A |
