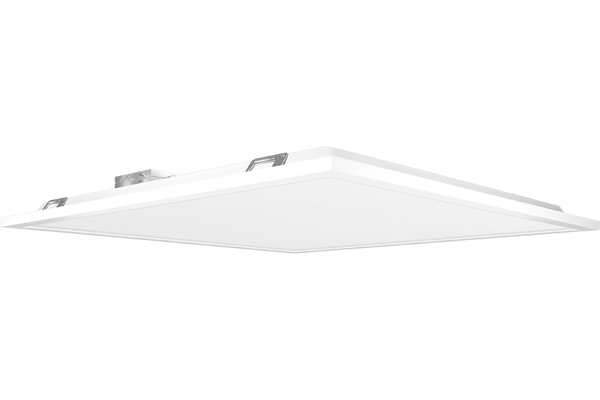

RAB T34-2X2-30N/D10 T17 Backlit Indoor Troffer, LED Lamp, 120/277 VAC, Galvanized Steel/Plastic Housing
RAB T34-2X2-30N/D10 T17 Backlit Indoor Troffer, LED Lamp, 120/277 VAC, Galvanized Steel/Plastic Housing
SKU: RABT34-2X2-30N/D10
Manufacturer Part Number: T34-2X2-30N/D10
UPC: 019813834757
Features
- 0.24 A at 120 VAC, 0.15 A at 208 VAC, 0.13 A at 240 VAC, 0.11 A at 277 VAC amperage rating
Specification
| Series | T17 |
|---|---|
| Type | Backlit |
| Voltage Rating | 120/277 VAC |
| Standard & Approvals | UL Listed for Damp Locations, ANSI C78.377-2017 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.24 A |
| Average Life | 50000 hr |
| Ballast Type | 10% 0 to 10 V Standard Down Dimming |
| Catalog ID | RABT34-2X2-30N/D10 |
| Color Rendering Index (CRI) | 80 |
| Color Temperature | 4000 K |
| Dimensions | 2 ft H x 2 ft W x 2.84 in D |
| Housing Material | Galvanized Steel/Plastic |
| Lamp Type | LED |
| Lamp Wattage | 30 W |
| Lens Type | Frosted Polystyrene |
| Light Color | Neutral White |
| Light Output | 117.7 Lumens/W |
| Lumens | 3284 Lumens |
| Mounting Type | Ceiling |
