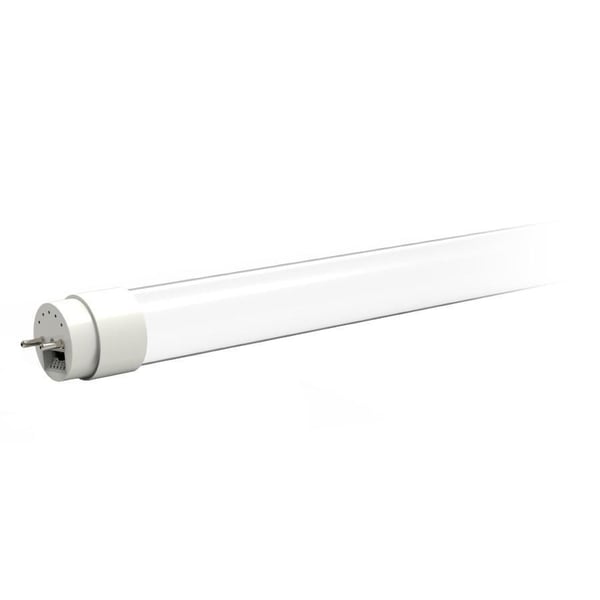

RAB T8-15-48G-8CCT-HYB Dimmable Linear Tube, 15 W, G13 LED Lamp, 2124 to 2218 Lumens, 6500, 5000, 4000, 3500, 3000 K, 47-3/4 in L
RAB T8-15-48G-8CCT-HYB Dimmable Linear Tube, 15 W, G13 LED Lamp, 2124 to 2218 Lumens, 6500, 5000, 4000, 3500, 3000 K, 47-3/4 in L
SKU: RABT8-15-48G-8CCT-HYB
Manufacturer Part Number: T8-15-48G-8CCT-HYB
UPC: 192552024594
Features
- 5 Color temperature selectable between 6500K, 5000K, 4000K, 3500K, 3000K
- Direct replacement for fluorescent lamps F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
- TYPE A - plug and play compatible with most common commercial instant start T8 electronic ballasts
- TYPE B - can be wired directly to line voltage 120-277V, Can be wired using Single or Double ended method
- Works with both shunted and non-shunted sockets
Specification
| Shape | T8 |
|---|---|
| Start Type | Instant |
| Type | Dimmable |
| Voltage Rating | 120 to 277 V |
| Standard & Approvals | ANSI C78.377-2017, NSF Standard, FCC Part 15, BAA Compliant, RoHS Compliant, DLC Listed, UL Listed, UL Classified |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 50000 hr |
| Color Rendering Index (CRI) | 80 |
| Fixture Type | Enclosed |
| Lamp Type | LED |
| Length | 47-3/4 in |
| Lamp Finish | Frosted |
| Wattage | 15 W |
| Lumens | 2124 to 2218 Lumens |
| Lamp Base | G13 |
| Diameter | 1-1/16 in |
| Color Temperature | 6500, 5000, 4000, 3500, 3000 K |
| Catalog ID | RABT8-15-48G-8CCT-HYB |
| Ballast Type | Plug and Play |
| Amperage Rating | 0.13, 0.08, 0.07, 0.06 A |
| Application | Suitable for use in dry and damp environments |
