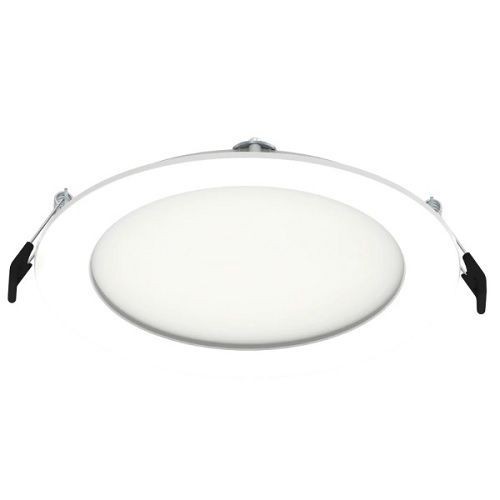

RAB WFRL6R139FA120WS WFRL Wafer Direct Mount, LED Lamp, 120 V, Plastic Housing
RAB WFRL6R139FA120WS WFRL Wafer Direct Mount, LED Lamp, 120 V, Plastic Housing
SKU: RABWFRL6R139FA120WS
Manufacturer Part Number: WFRL6R139FA120WS
UPC: 019813682471
Documents
Features
- IC and airtight rated
- Robust, die cast aluminum construction
- Spring loaded retention clips
- Super slim Edge-lit fixture for thin fixture depth
- High CRI of 90+ for true color rendering
- New construction or retrofit applications
- Super slim and edge-lit
- No recessed housing or J-box required
- Smooth diffused uniform light distribution
- Dimmable down to 5% on compatible dimmers
Specification
| Recessed Trim Type | Baffle |
|---|---|
| Series | WFRL |
| Voltage Rating | 120 V |
| Standard & Approvals | UL Listed, BAA Compliant, RoHS-Compliant, Trade Agreements Act, T24 JA8 Compliant, Airtight ASTM E283, Safety Listing |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.13 A |
| Average Life | 50000 hrs |
| Catalog ID | RABWFRL6R139FA120WS |
| Color Rendering Index (CRI) | 90 CRI |
| Color Temperature | 2700, 3000, 3500, 4000, 5000 K |
| Dimensions | 0.5 in H x 5 in Dia |
| Housing Material | Plastic |
| Lamp Type | LED |
| Lamp Wattage | 13 W |
| Lens Type | Acrylic |
| Lighting Technology | Edge-Lit |
| Light Output | 76 Lumens/W |
| Lumens | 1048 Lumens |
| Mounting Type | Ceiling |
| Includes | Gaskets |
