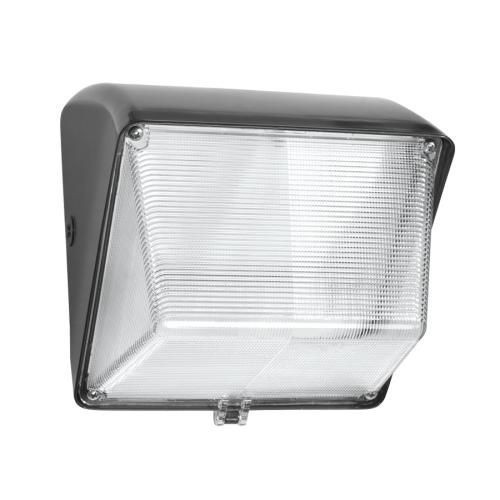

RAB WP1LED30N Wallpack, LED Lamp, 30 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB WP1LED30N Wallpack, LED Lamp, 30 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABWP1LED30N
Manufacturer Part Number: WP1LED30N
UPC: 019813306278
Features
- Covers footprint of traditional HID wallpack
- Replaces up to 100 W metal halide wallpack
- 0.25 A at 120 VAC, 0.16 A at 208 VAC, 0.14 A at 240 VAC, 0.12 A at 277 VAC
Specification
| Housing Finish | Bronze |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 30 W |
| Lens Type | Prismatic Polycarbonate Refractor |
| Light Color | Neutral White |
| Lumens | 2933 Lumens |
| Mounting Type | Wall/Junction Box |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.25/0.16/0.14/0.12 A |
| Average Life | 100000 |
| Ballast Type | Class 2 Constant Current |
| Catalog ID | RABWP1LED30N |
| Color Rendering Index (CRI) | 84 |
| Color Temperature | 4000 |
| Dimensions | 8-1/2 in H x 8-1/2 in W x 7-1/2 in D |
| Fixture Wattage | 30 W |
| Series | WP1LED |
| Voltage Rating | 120/208/240/277 VAC |
| Standard & Approvals | ARRA, Buy American Act Compliant, DLC, UL Listed for Wet Locations, ANSI C78.377-2017 |
