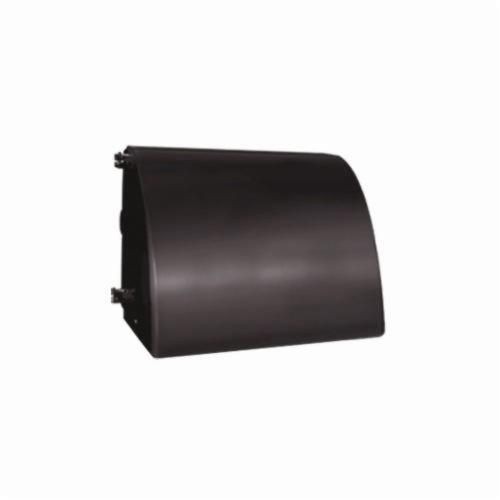

RAB WP2FCH150PSQ Full Cutoff HID Pulse Start Wallpack, (1) ED17 Lamp, 190 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB WP2FCH150PSQ Full Cutoff HID Pulse Start Wallpack, (1) ED17 Lamp, 190 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABWP2FCH150PSQ
Manufacturer Part Number: WP2FCH150PSQ
UPC: 019813188300
Documents
Features
- Drilling template for easy box mounting
- Silicone gasket remains in place during relamping
- Top, side and back conduit openings
- 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol
- Hinged refractor frame
- Continuous silicone rubber gasket
- Specular anodized aluminum, removable for installation, symmetrical light pattern maximizes distance between fixtures
- Symmetrical light pattern maximizes distance between fixtures reflector
- Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals
- Prismatic optics designed to minimize glare and throw light down and out
- Heat resistant borosilicate glass
- 74 LPW efficacy at lamp, 79 percent efficiency at ballast
- Full cutoff glare shield for friendly lighting
- 1.4/1.7 A at 120 VAC, 0.8/1 A at 208 VAC, 0.7/0.8 A at 240 VAC
Specification
| Housing Finish | Polyester Powder Coated |
|---|---|
| Housing Material | Aluminum |
| Lamp Base | Medium |
| Lamp Type | ED17 |
| Lamp Wattage | 150 W |
| Lens Type | Tempered Glass |
| Light Color | Bronze |
| Lumens | 14000 Lumens |
| Mounting Type | Surface |
| Number of Lamps | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=GQ-TTqLz7v0 |
| Amperage Rating | 1.7/1.4/1/0.8/0.7/0.6 A |
| Average Life | 15000 hr |
| Ballast Type | HX-HPF QT |
| Catalog ID | RABWP2FCH150PSQ |
| Dimensions | 9 in H x 14 in W x 9-1/4 in D |
| Fixture Wattage | 190 W |
| Voltage Rating | 120/208/240/277 VAC |
| Application | For wet locations, HID fixtures can be wired with 90 deg C supply wiring if supply wires are routed 3 in away from ballast |
| Standard & Approvals | UL Listed |
| Includes | Long Life lamp |
