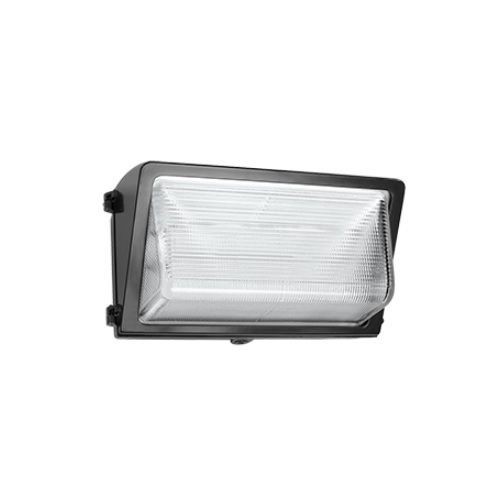

RAB WP3LED82 Wallpack, LED Lamp, 81 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB WP3LED82 Wallpack, LED Lamp, 81 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABWP3LED82
Manufacturer Part Number: WP3LED82
UPC: 019813493411
Documents
Features
- Affordable wallpack with traditional look
- Covers footprint of traditional HID wallpacks
- WP3LED replaces up to 400 W metal halide
- 0.7 A at 120 VAC, 0.34 A at 208 VAC, 0.32 A at 240 VAC, 0.3 A at 277 VAC
Specification
| Housing Finish | Bronze |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | Multi-Chip LED |
| Light Color | Cool White |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.3/0.32/0.34/0.7 A |
| Average Life | 100000 |
| Ballast Type | Constant Current |
| Catalog ID | RABWP3LED82 |
| Color Rendering Index (CRI) | 82 |
| Color Temperature | 5000 |
| Fixture Wattage | 81 W |
| Voltage Rating | 120/208/240/277 VAC |
| Application | Outdoor Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, UL Listed for Wet Locations, IESNA LM-79, LM-80, ANSI C78.377-2017, DLC Listed |
| Lumens | 9280 Lumens |
| Light Output | 114 |
| Lens Type | Prismatic/Borosilicate Glass |
| Lamp Wattage | 82 W |
| Series | WP3LED |
| Dimensions | 9 in H x 17 in W x 10 in D |
