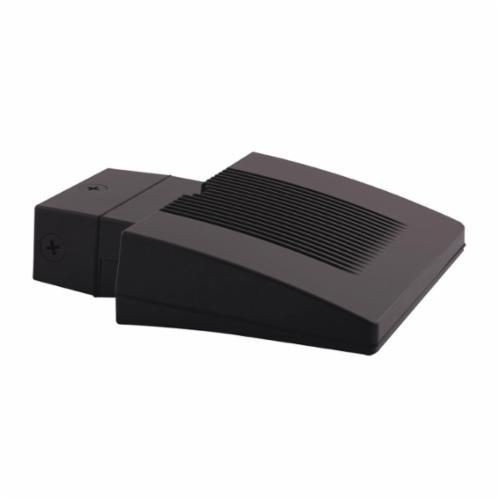

RAB WPLED18 Standard Wallpack, LED Lamp, 20 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB WPLED18 Standard Wallpack, LED Lamp, 20 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABWPLED18
Manufacturer Part Number: WPLED18
UPC: 019813191027
Documents
Features
- Ultra-high efficiency led 18 watt wallpack
- Replaces 150W metal halide wallpacks
- No photocell
- Suitable for use in 40 deg C ambient temperatures.
- 5000K (Cool) color temperature
- 120 V: 0.17 A, 208 V: 0.11 A, 240 V: 0.09 A, 277 V: 0.08 A amperage rating
Specification
| Housing Material | Aluminum |
|---|---|
| Lamp Type | LED |
| Lamp Wattage | 18 W |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 100000 hr |
| Voltage Rating | 120/208/240/277 VAC |
| Lumens | 2044 Lumens |
| Fixture Wattage | 20 W |
| Dimensions | 6 in L x 9-1/4 in W |
| Color Temperature | 5000 K |
| Application | Wet Location |
| Color Rendering Index (CRI) | 66 |
| Catalog ID | RABWPLED18 |
| Amperage Rating | 0.17/0.11/0.09/0.08 A |
| Housing Finish | Polyester Powder Coated |
| Light Color | Bronze |
