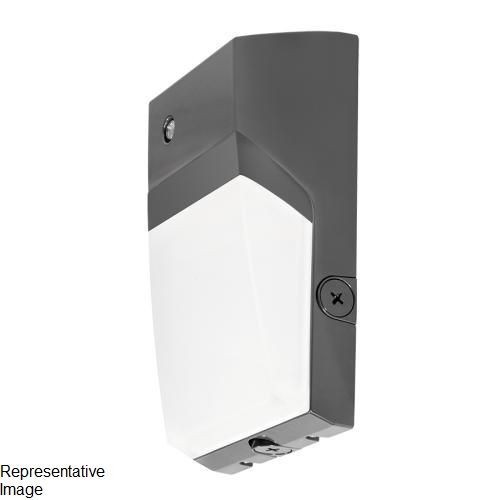

RAB WPTLED40N/D10/PC2 Tallpack With 0 to 10 VDC Dimming Driver and 120 to 277 VAC Photocell, LED Lamp, 38 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB WPTLED40N/D10/PC2 Tallpack With 0 to 10 VDC Dimming Driver and 120 to 277 VAC Photocell, LED Lamp, 38 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABWPTLED40N/D10/PC2
Manufacturer Part Number: WPTLED40N/D10/PC2
UPC: 019813423807
Features
- Covers footprints of most HID tallpacks
- Vandal resistant lens
- 0.322 A at 120 VAC, 0.202 A at 208 VAC, 0.175 A at 240 VAC, 0.147 A at 277 VAC
Specification
| Housing Finish | Bronze |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 40 W |
| Lens Type | Diffuse Polycarbonate |
| Light Color | Neutral White |
| Lumens | 4125 Lumens |
| Mounting Type | Wall |
| Series | WPTLED |
| Voltage Rating | 120/208/240/277 VAC |
| Standard & Approvals | UL Listed for Wet Locations, ANSI C78.377-2017 |
| Amperage Rating | 0.322/0.202/0.175/0.147 A |
| Dimensions | 11-1/2 in H x 7-3/8 in W x 3-3/4 in D |
| Average Life | 100000 |
| Ballast Type | Class 2 Constant Current |
| Color Rendering Index (CRI) | 73 |
| Color Temperature | 4000 |
| Enclosure Type | IP66 |
| Fixture Wattage | 38 W |
