RACO® 1212 Grounding Conduit Bushing With Lay-In Lug, 14 to 4 AWG AC Cable, 1/2 in Trade, Malleable Iron, Electro-Plated Zinc

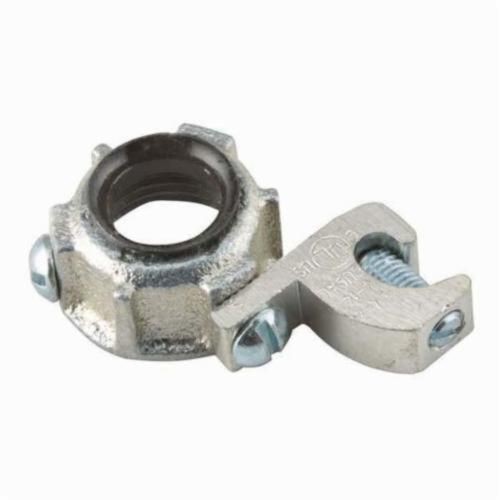

Selected 1216RACO® 1215 Grounding Conduit Bushing With Lay-In Lug, 14 to 4 AWG AC Cable, 1-1/4 in Trade, Malleable Iron, Electro-Plated Zinc
1216RACO® 1215 Grounding Conduit Bushing With Lay-In Lug, 14 to 4 AWG AC Cable, 1-1/4 in Trade, Malleable Iron, Electro-Plated Zinc

Documents

Features

  • Lay-In-Lug™ styles provide an easy means of inserting a ground wire
  • Assembled two piece includes bushing with insuliner and lug construction
  • Malleable iron construction insures mechanical protection for the raceway
  • Dual rated aluminum grounding lugs may be used with copper or aluminum grounding conductors
  • Zinc electro plated for corrosion protection
  • 14 AWG Solid - 4 AWG Stranded cable size

Specification

Material
Malleable Iron
Temperature Rating
150 deg C
Trade Size
1/2 in
Application
For use on threaded rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing
Standard & Approvals
UL 514B Listed, CSA C22.2 No 18 Certified
Dimensions
9/16 in ID x 1-5/32 in OD x 37/64 in H
AC Cable Size
14 - 4 AWG
Color
Silver
Finish
Zinc Electroplated
