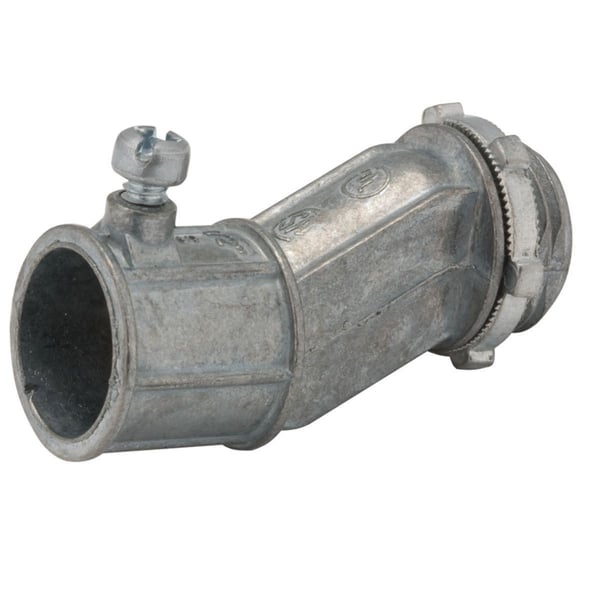

RACO® 1763 Non-Insulated Offset Conduit Connector, 3/4 in Trade, 13/16 in Cable Openings, For Use With EMT Conduit, Die Cast Zinc
RACO® 1763 Non-Insulated Offset Conduit Connector, 3/4 in Trade, 13/16 in Cable Openings, For Use With EMT Conduit, Die Cast Zinc
SKU: RAC1763
Manufacturer Part Number: 1763
UPC: 050169017630
Documents
Features
- Rugged metallic construction insures mechanical protection for the raceway
- Suitable for applications above 600 VAC
- Concrete-tight when taped
- RACO® set screw couplings provide concrete-tight connections when taped
- 55/64 in ID throat
- 15/32 in thread length
Specification
| Material | Die Cast Zinc |
|---|---|
| Mounting Type | Threaded |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Openings | 13/16 in |
| Catalog ID | RAC1763 |
| Color | Silver |
| Diameter | 15/16 in ID x 1/32 in OD |
| Dimensions | 3.0156 in L |
| Suitable For Use With | EMT Conduit |
| Trade Size | 3/4 in |
| Type | Non-Insulated Offset |
| Application | Used in dry locations to bond EMT conduit to a box or enclosure and electrical applications |
| Standard & Approvals | UL File No. E195969, CSA C22.2 No. 18 |
