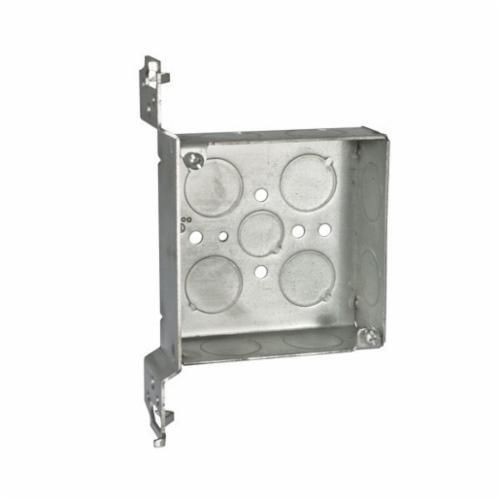

RACO® 199 Square Box With Conduit Knockout, Steel, 21 cu-in Capacity, 11 Knockouts, 4.38 in H x 6.88 in W x 1.5 in D

Selected 199RACO® 199 Square Box With Conduit Knockout, Steel, 21 cu-in Capacity, 11 Knockouts, 4.38 in H x 6.88 in W x 1.5 in D
199RACO® 199 Square Box With Conduit Knockout, Steel, 21 cu-in Capacity, 11 Knockouts, 4.38 in H x 6.88 in W x 1.5 in D

Documents

Short Description

RACO is the United States' leading manufacturer of steel electrical boxes and covers. RACO manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thinwall) fittings and liquid tight conduit fittings.

Features

  • Welded construction
  • Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
  • TKO™ Knockouts allow for design and installation flexibility
  • "FM" type bracket for wood/metal studs
  • Side knockouts: (6) 3/4 in
  • Bottom knockouts: (1) 1/2 in, (4) 3/4 in
  • Patented TKO™ 1/2 in & 3/4 in eccentric knockouts (Per U.L. 514-A, suitable for use without a bonding jumper in circuits above or below 250 volts)
  • Combination cover screw heads provide for faster mud ring/cover installation
  • FM bracket mounts flat on side of stud and provides a rigid/secure box installation

Specification

Knockout Size
1/2 and 3/4 in
Material
Steel
Mounting Type
Flush
Minimum Order Qty
1
Order Interval
1
Catalog ID
RAC199
Color
Silver
Dimensions
4.38 in H x 6.88 in W x 1.5 in D
Finish
Pre-Galvanized
Shape
Square
Standard & Approvals
UL E195978
Number of Knockouts
11
Application
For electrical application, lighting fixtures, switches or receptacles
Capacity
21 cu-in
Cable Entry
Knockouts
