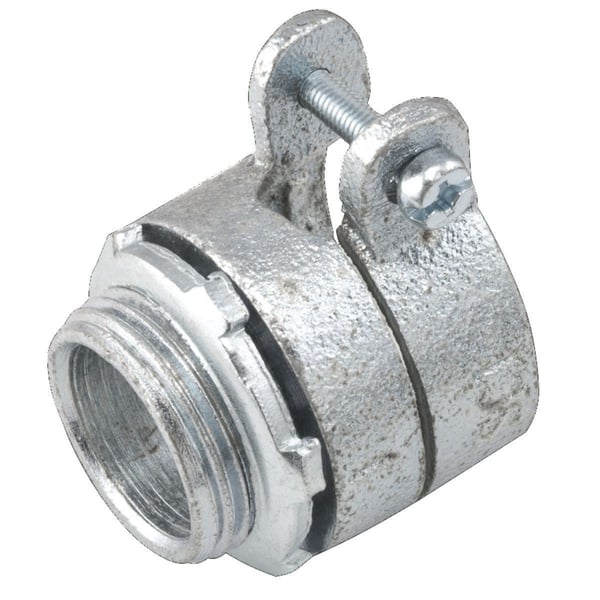

RACO® 2105 Non-Insulated Straight Squeeze Conduit Connector, 1-1/4 in Trade, 1-1/4 in Cable Openings, For Use With FMC, Malleable Iron, Electro-Plated Zinc

Selected 2103RACO® 2105 Non-Insulated Straight Squeeze Conduit Connector, 1-1/4 in Trade, 1-1/4 in Cable Openings, For Use With FMC, Malleable Iron, Electro-Plated Zinc
2103RACO® 2105 Non-Insulated Straight Squeeze Conduit Connector, 1-1/4 in Trade, 1-1/4 in Cable Openings, For Use With FMC, Malleable Iron, Electro-Plated Zinc

Documents

Features

  • All malleable iron construction insures mechanical protection for the raceway
  • Electro zinc plated for added corrosion protection
  • UPC bar coded fittings are individually polybagged with a pre-printed UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
  • 1.19 in ID throat
  • 33/64 in thread length

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Cable Openings
1-1/4 in
Catalog ID
RAC2105
Color
Silver
Dimensions
1.7968 in L x 2.5625 in W
Finish
Electro-Plated Zinc
Suitable For Use With
FMC
Trade Size
1-1/4 in
Type
Non-Insulated Straight
Application
Used in dry locations to bond flexible metal conduit to a box or enclosure and electrical applications
Standard & Approvals
UL File No. E195969, cULus Listed
