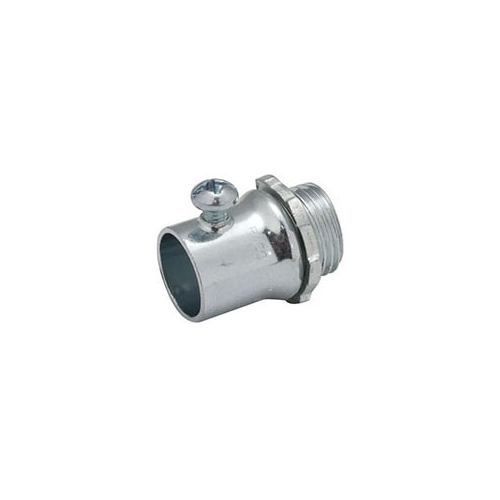

RACO® 2140 Non-Insulated Set Screw Conduit Connector, 2-1/2 in Trade, For Use With EMT/IMC/Rigid Conduit, Steel, Electro-Plated Zinc
RACO® 2140 Non-Insulated Set Screw Conduit Connector, 2-1/2 in Trade, For Use With EMT/IMC/Rigid Conduit, Steel, Electro-Plated Zinc
SKU: RAC2140
Manufacturer Part Number: 2140
UPC: 050169021408
Documents
Features
- RACO® Set-screw connectors are suitable for applications above 600V
- RACO® steel set screw connectors provide concrete-tight connections when taped
- All steel construction insures mechanical protection for the raceway
- Tri-head screws may be installed using a slotted, phillips or robertson head screwdriver
- 2-1/2 in to 4 in trade sizes are also UL Listed for use on Rigid/IMC conduit, allowing for design and installation flexibility
- All components are zinc electroplated for corrosion protection
- 1/2 in to 1 in trade sizes have one set screw, 1-1/4 in to 4 in trade sizes have two set screws
- Set Screw
- 0.115 in THK
- Zinc Electroplated
Specification
| Material | Steel |
|---|---|
| Mounting Type | Screw |
| Suitable For Use With | EMT/Rigid/IMC Conduit |
| Trade Size | 2-1/2 in |
| Type | Non-Insulated |
| Application | For use in dry locations to bond EMT conduit to a box or enclosure |
| Standard & Approvals | UL 514B, UL E195969, E195970 Listed |
| Dimensions | 3.2 in L |
| Color | Silver |
| Finish | Zinc Plated |
