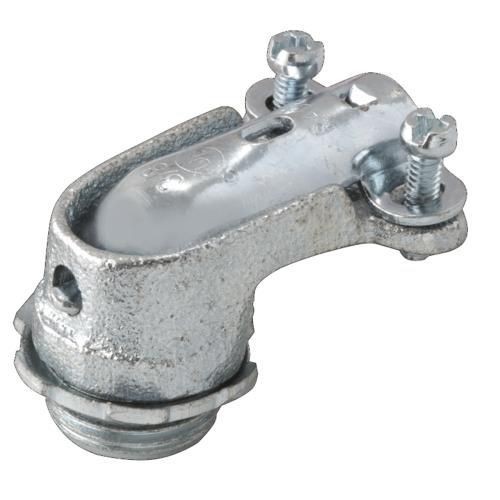

RACO® 2203 Non-Insulated Squeeze Conduit Connector, 3/4 in Trade, 0.822 in Cable Openings, For Use With FMC, Malleable Iron, Zinc Plated

Selected RACO® 2203 Non-Insulated Squeeze Conduit Connector, 3/4 in Trade, 0.822 in Cable Openings, For Use With FMC, Malleable Iron, Zinc Plated
RACO® 2203 Non-Insulated Squeeze Conduit Connector, 3/4 in Trade, 0.822 in Cable Openings, For Use With FMC, Malleable Iron, Zinc Plated

Documents

Features

  • All malleable iron construction insures mechanical protection for the raceway
  • Electro zinc plated for added corrosion protection
  • UPC bar coded fittings are individually polybagged with a pre-printed UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
  • 0.82 in ID throat
  • 1/2 in thread length
  • Zinc Electroplated

Specification

Material
Malleable Iron
Trade Size
3/4 in
Type
Non-Insulated
Application
For use in dry locations to bond flexible metal conduit to a box or enclosure
Angle
90 deg
Color
Silver
Finish
Zinc Plated
Dimensions
2-1/2 in L x 1-31/32 in W
Standard & Approvals
UL E195969 Listed
Suitable For Use With
FMC
