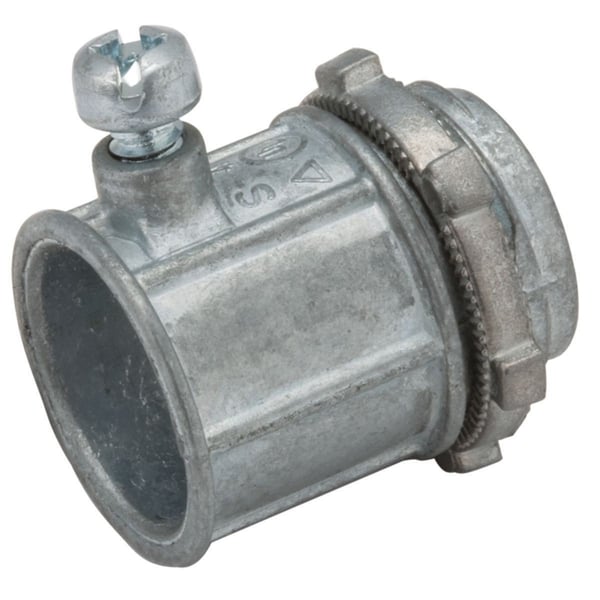

RACO® 2603 Non-Insulated Set Screw Conduit Connector, 3/4 in Trade, 13/16 in Cable Openings, For Use With EMT Conduit, Die Cast Zinc
RACO® 2603 Non-Insulated Set Screw Conduit Connector, 3/4 in Trade, 13/16 in Cable Openings, For Use With EMT Conduit, Die Cast Zinc
SKU: RAC2603
Manufacturer Part Number: 2603
UPC: 050169026038
Documents
Features
- RACO® set screw connectors are suitable for applications above 600 VAC
- RACO® die cast set crew connectors provide concrete-tight connections when taped
- Rugged metallic construction provides mechanical protection for the raceway
- 2-1/2 in to 4 in trade sizes are UL listed for use on Rigid/IMC conduit, allowing for installation flexibility
- 13/16 in ID Throat
- 15/32 in thread length
- Concrete tight connection when taped
Specification
| Material | Die Cast Zinc |
|---|---|
| Mounting Type | Threaded |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Silver |
| Dimensions | 1.406 in L |
| Suitable For Use With | EMT Conduit |
| Trade Size | 3/4 in |
| Type | Non-Insulated Set Screw |
| Application | Used in dry locations to bond EMT conduit to a box or enclosure and electrical applications |
| Standard & Approvals | UL File No. E195970, CSA Certified |
| Diameter | 15/16 in ID x 1-7/32 in OD |
| Catalog ID | RAC2603 |
| Cable Openings | 13/16 in |
