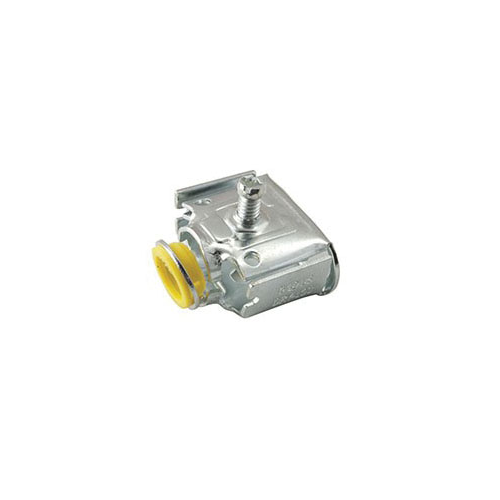

RACO® REDI-LOC® 2715 Duplex Cable Connector, 1/2 in Trade, 0.563 in Cable Openings, Steel, Electro-Plated Zinc
RACO® REDI-LOC® 2715 Duplex Cable Connector, 1/2 in Trade, 0.563 in Cable Openings, Steel, Electro-Plated Zinc
SKU: RAC2715
Manufacturer Part Number: 2715
UPC: 050169027158
Documents
Features
- No tools needed to assemble to end of cable or to install into box or enclosure
- Preassembled anti-short bushing will not fall out during installation
- Easy installation push the cable into the fcutting, push connector into the box or enclosure
- Can be removed without tools, and is reusable
- Rugged one-piece design
- Zinc electroplated for corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code, and packaged in pre-scored tear top cartons for an attractive presentation
- Tri-head screw/clamp design can accommodate two runs of MCI, AC, and HCF cable
- Connector can be installed by using a slotted, Phillips, or Robertson head screwdriver
- 9/16 in ID throat
- Nylon Bushing
Specification
| Material | Steel |
|---|---|
| Mounting Type | Snap-In |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | RAC2715 |
| Color | Silver |
| Dimensions | 1-5/8 in L x 9/16 in W |
| Trade Size | 1/2 in |
| Type | Duplex |
| Application | For use in dry locations to connect mci, mci-a, ac, and hcf cable into a box or enclosure |
| Standard & Approvals | UL E195966 Listed |
