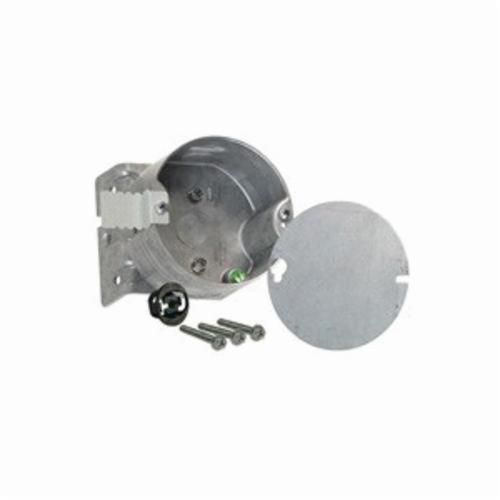

RACO® 294-1 Ceiling Fan Box, Steel, 21.5 cu-in, 3 Knockouts

Selected 294-1RACO® 294-1 Ceiling Fan Box, Steel, 21.5 cu-in, 3 Knockouts
294-1RACO® 294-1 Ceiling Fan Box, Steel, 21.5 cu-in, 3 Knockouts

Documents

Short Description

Raco® steel ceiling fan support boxes are constructed from one piece of steel and feature unique mounting screws for added durability. these boxes are used for new construction, applications where joists are accessible, or renovation (old work) where joist access is limited.

Features

  • No protruding ground screw or fan mounting screws allows easy installation
  • Metal protection plate eliminates debris or damage to wiring
  • Easy to follow instructions
  • No 10-32, 1 in long ceiling fan screws provided and provision for no 8-32 fixture mounting screw
  • Setback tab allows for easy installation of different wall thickness, 1/2 to 1-1/4 in bracket setback
  • Acceptable for use in 2 hr rated walls and ceilings
  • Insider® cable priouts
  • Fa bracket, for wood joists
  • Drawn construction, raise ground
  • (2) 1/2 in side, (1) 1/2 in bottom knockout
  • 70 lb ceiling fan, 70/150 lb fixture
  • 2-1/8 in depth

Specification

Knockout Size
1/2 in
Material
Steel
Number of Knockouts
3
Minimum Order Qty
1
Order Interval
1
Cable Entry
Pri-Out
Capacity
22.3 cu-in
Catalog ID
RAC294-1
Color
Silver
Diameter
4 in
Dimensions
2-1/8 in D
Finish
Pre Galvanized
Shape
Round
Type
Fan
Application
Forceilingfanandceilingorwalllightfixturesupport
Includes
Non-metallic Sheathed Cable Connector, Mounting Hardware and Instructions
