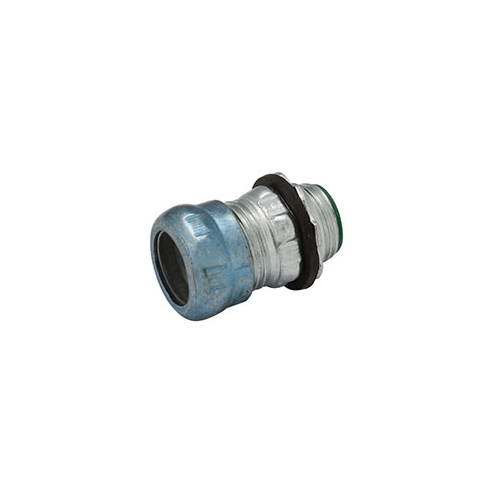

RACO® 2966RT Insulated Raintight Compression Connector, 4 in Trade, For Use With EMT Conduit, Steel, Electro-Plated Zinc
RACO® 2966RT Insulated Raintight Compression Connector, 4 in Trade, For Use With EMT Conduit, Steel, Electro-Plated Zinc
SKU: RAC2966RT
Manufacturer Part Number: 2966RT
UPC: 050169501078
Documents
Features
- All steel construction insures mechanical protection for the raceway
- Fcuttings are available in 1/2 in to 4 in trade sizes
- All fcuttings are marked "Wet Locations" to allow inspecting authorities to immediately determine that the installation is up to code
- All connectors are supplied with a factory installed knockout seal No need to add the expense of buying a gasket separately
- No need to disassemble the fcutting prior to installation RACO® Rain tight Steel EMT Compression fittings are designed so that when they come out of the carton they can be installed directly on the conduit No need to waste time loosing compression nuts
- No need for special tools to install properly Install these fittings like any other Steel EMT Compression fcutting No need for a torque wrench to insure proper installation
- 1 in thread length
- Zinc Electroplated
Specification
| Material | Steel |
|---|---|
| Suitable For Use With | EMT Conduit |
| Trade Size | 4 in |
| Type | Insulated |
| Application | For use in wet locations to bond and secure EMT conduit to a box or enclosure |
| Standard & Approvals | cULus 514B, UL E195969, CSA C22.2 No 18 Certified |
| Dimensions | 2.81 in L |
| Color | Silver |
| Diameter | 5.18 in |
| Finish | Zinc Plated |
