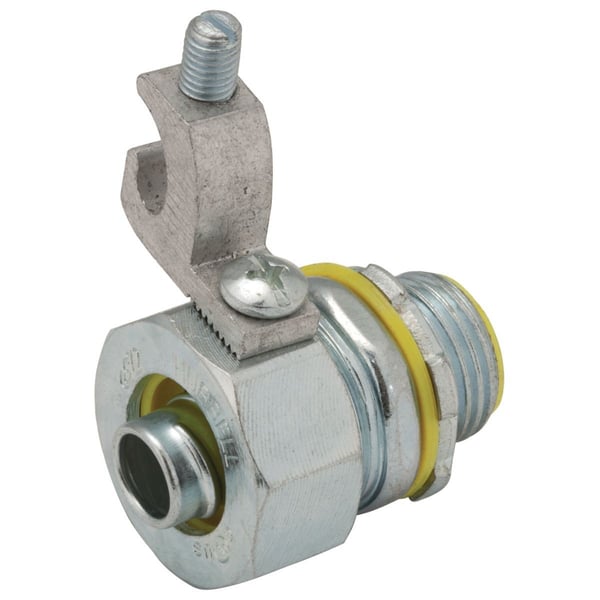

RACO® 3512-3 Insulated Straight Conduit/Cord Connector With Ground Lug, 1/2 in Trade, Malleable Iron/Steel, Electro-Plated Zinc
RACO® 3512-3 Insulated Straight Conduit/Cord Connector With Ground Lug, 1/2 in Trade, Malleable Iron/Steel, Electro-Plated Zinc
SKU: RAC3512-3
Manufacturer Part Number: 3512-3
UPC: 050169351239
Documents
Features
- Patented split gland-ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts
- All components are reusable RACO® liquidtight connectors may be easily disassembled and reused after years of service
- Sealing washer provides a liquidtight seal when terminating the connector in a threadless opening
- Heavy-duty locknut with every RACO® liquidtight connector assures continuity of ground
- 1-1/4 to 2 in malleable iron bodies, 3/8 to 1 in steel, 3/8 to 1 in steel nuts, 1-1/4 to 4 in malleable iron nuts
- 1/2 in L thread
- 1/2 in -14 NPT thread specification
- 25/32 in lug size
- No 14 - 4 grounding lug
Specification
| Material | Malleable Iron/Steel |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Silver |
| Dimensions | 1-15/32 in L x 1-3/16 in W |
| Finish | Electro-Plated Zinc |
| Trade Size | 1/2 in |
| Type | Insulated Straight |
| Standard & Approvals | CSA Certified, UL Listed, Class 1, Div 2, Class 2, Div 1, 2, Class 3, Div 1, 2 |
| Includes | Sealing Washer and Locknut |
| Application | Used in outdoor or indoor locations, when installation of a copper or aluminum external bonding jumper is required and hazardous locations |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit/Cord |
| Catalog ID | RAC3512-3 |
