RACO® 3703-2 Form 3 Strain Relief Straight Cord Connector, 3/4 in Trade, 3/8 to 1/2 in Cable Openings, Steel, Electro-Plated Zinc

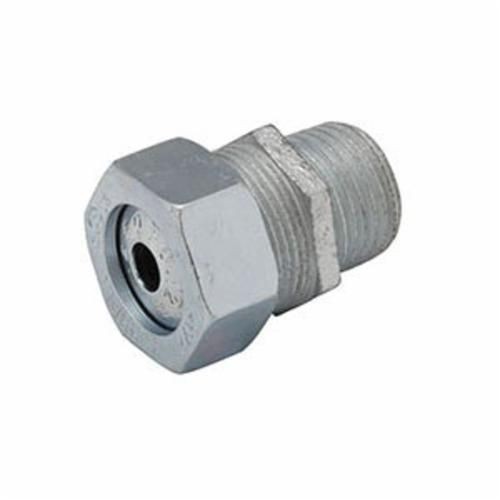

Selected 3703-3RACO® 3702-6 Form 2 Strain Relief Straight Cord Connector, 1/2 in Trade, 0.5 to 0.6 in Cable Openings, Steel, Electro-Plated Zinc
3703-3RACO® 3702-6 Form 2 Strain Relief Straight Cord Connector, 1/2 in Trade, 0.5 to 0.6 in Cable Openings, Steel, Electro-Plated Zinc

Documents

Short Description

RACO is one of the oldest brands in the electrical industry and its name is synonymous with quality and innovation. RACO continues to be a leading manufacturer of steel electrical boxes, covers, and fittings. It’s product portfolio also includes a complete line of nonmetallic boxes and covers, floor boxes and switches. RACO is dedicated to providing innovative, cost effective product solutions to the commercial and residential markets.

Features

  • All steel/malleable construction provides mechanical strength
  • Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
  • Washers have cable size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel
  • All metallic components are zinc electro plated for added corrosion protection
  • UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code, and packaged in pre-scored tear top cartons for an attractive presentation
  • RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div 2, Class II, Div 1 and 2 and Class III, Div 1 and 2 hazardous locations
  • Form size 3
  • Steel nuts
  • 9/16 in thread length
  • 3/4 in-14 NPT

Specification

Material
Steel
Trade Size
3/4 in
Type
Strain Relief
Application
For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable
Standard & Approvals
cULus Listed, UL E195973 Listed
Cable Openings
3/8 - 1/2 in
Color
Silver
Connection Type
NPT
Finish
Zinc Plated
Dimensions
1-31/64 in L x 1-13/32 in W
