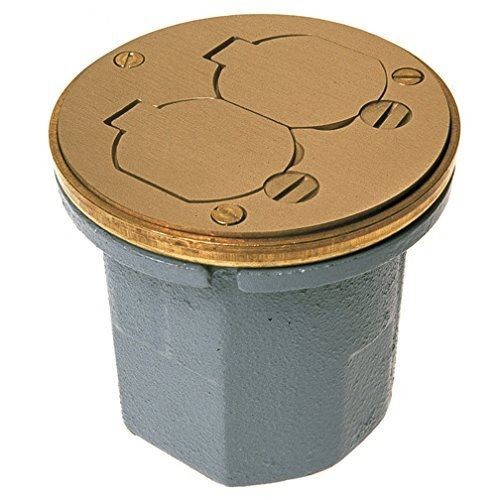

RACO® 6224 Duplex Non-Adjustable Watertight Floor Box, Cast Iron, 18.5 cu-in Capacity, 2 Outlets, 2 Knockouts, 4-1/4 in H x 4-5/8 in W x 3-3/4 in D

Selected 6224RACO® 6224 Duplex Non-Adjustable Watertight Floor Box, Cast Iron, 18.5 cu-in Capacity, 2 Outlets, 2 Knockouts, 4-1/4 in H x 4-5/8 in W x 3-3/4 in D
6224RACO® 6224 Duplex Non-Adjustable Watertight Floor Box, Cast Iron, 18.5 cu-in Capacity, 2 Outlets, 2 Knockouts, 4-1/4 in H x 4-5/8 in W x 3-3/4 in D

Documents

Features

  • Cast iron, watertight boxes are non-adjustable
  • Gray powder coat paint inside and out for additional corrosion resistance
  • 1/2 in and 3/4 in threaded conduit openings are standard, all bottom openings are accessible
  • RACO® wood floor boxes provide flush service for power or voice/data
  • Non-adjustable floor boxes may be used in wood or concrete floors
  • 1/2 in outlet

Specification

Hub Size
2-1/2 in
Material
Cast Iron
Number of Knockouts
2
Number of Outlets
2
Shape
Round
Type
Duplex Cover
Application
For carpet, tile or wood floor
Standard & Approvals
UL E195978
Dimensions
4-1/4 in H x 4-5/8 in W x 3-3/4 in D
Capacity
18.5 cu-in
Color
Gray
Finish
Powder Coated
Includes
Box, 6249 Brass Duplex Cover with Lift Lids and Brass Tile Flange
