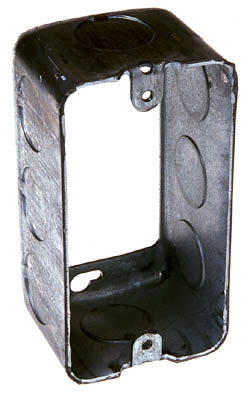

RACO® 665 Extension Ring Handy Box, Steel, 13 cu-in, 1 Gang, 1 Outlet, 6 Knockouts
RACO® 665 Extension Ring Handy Box, Steel, 13 cu-in, 1 Gang, 1 Outlet, 6 Knockouts
SKU: RAC665
Manufacturer Part Number: 665
UPC: 050169006658
Documents
Features
- Handy Boxes, also called utility boxes, are used for convenience outlets, switch boxes or small junction boxes
- The NEC requires that surface mounted wiring be enclosed with a protective covering such as EMT conduit
- Drawn construction
- No bracket
- (2) 1/2 in end, (6) 1/2 in side conduit knockouts
- Acceptable for use in 2-hour rated walls
- No raise ground
- Nail-On/screw-on mounting
Specification
| Knockout Size | 1/2 in |
|---|---|
| Material | Steel |
| Mounting Type | Threaded |
| Number of Gangs | 1 |
| Number of Knockouts | 8 |
| Number of Outlets | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | Knockouts |
| Capacity | 13 cu-in |
| Catalog ID | RAC665 |
| Color | Silver |
| Dimensions | 4 in H x 2.13 in W x 1.875 in D |
| Finish | Pre-Galvanized |
| Application | They are popular for exposed work applications (surface mounted wiring) |
| Standard & Approvals | UL E195978 |
