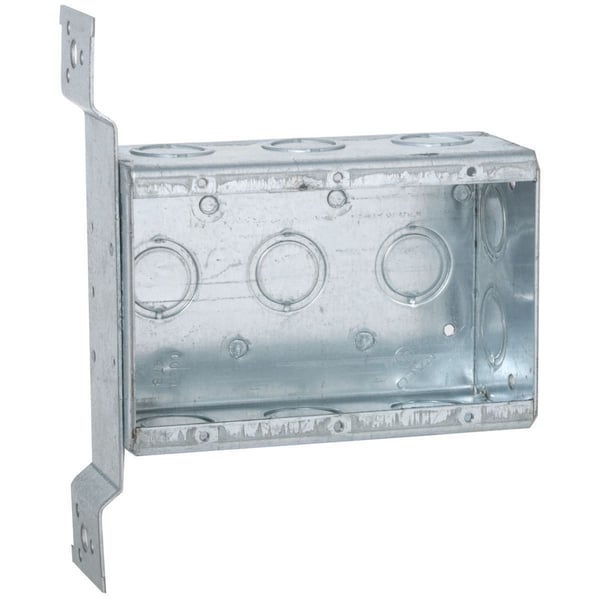

RACO® 686 Multi-Device Switch Box, Steel, 47.8 cu-in, 3 Gangs, 2 Outlets, 22 Knockouts
RACO® 686 Multi-Device Switch Box, Steel, 47.8 cu-in, 3 Gangs, 2 Outlets, 22 Knockouts
SKU: RAC686
Manufacturer Part Number: 686
UPC: 050169006863
Documents
Features
- Installers can save time and cut installation costs with 2-gang switch boxes
- Larger capacity boxes are ideal for today's designs where there is a need to install two devices at one location
- Acceptable for use in 2 hr rated walls
- FM bracket for metal or wood studs
- (2) 1/2 in and (2) 3-gang/4 in side knockouts
- Welded construction
- Nail-on screw-on mounting
- (6) 1/2 in, (6) 3-gang/4 in end knockouts
- (3) 1/2 in and (3) 3/4 in bottom knockouts
Specification
| Knockout Size | 1/2 in, 3/4 in |
|---|---|
| Material | Steel |
| Mounting Type | Threaded |
| Number of Gangs | 3 |
| Number of Knockouts | 22 |
| Number of Outlets | 2 |
| Type | Multi-Device |
| Application | For electrical, exposed work applications |
| Standard & Approvals | UL File No. E195978 |
| Dimensions | 6 in H x 7.63 in W x 2.5 in D |
| Cable Entry Size | Knockout |
| Capacity | 47.8 cu-in |
| Color | Silver |
| Finish | Pre-Galvanized |
| Includes | 1/2 in Setback |
