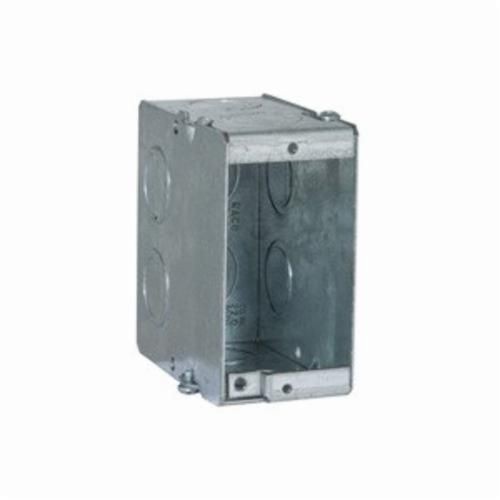

RACO® 689 Gangable Masonry Box, Steel, 22.5 cu-in Capacity, 1 Gangs, 1 Outlets, 11 Knockouts

Selected 689RACO® 689 Gangable Masonry Box, Steel, 22.5 cu-in Capacity, 1 Gangs, 1 Outlets, 11 Knockouts
689RACO® 689 Gangable Masonry Box, Steel, 22.5 cu-in Capacity, 1 Gangs, 1 Outlets, 11 Knockouts

Documents

Short Description

RACO is the United States' leading manufacturer of steel electrical boxes and covers. RACO manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thinwall) fittings and liquid tight conduit fittings.

Features

  • Rugged welded design does not fall apart during construction
  • Gangable design allows installer to build unlimited number of gangs to hold multiple devices
  • Rectangular shape fits square cuts in block
  • Standard 1/2 in and 3/4 in TKO™ knockouts
  • Device ears inside the box prevent mortar from getting in the device holes
  • Steel voltage partition No.675 fits 2-1/2 in and No. 676 fits 3-1/2 in depth
  • Forward mounted grounding provision allows for easy installation of grounding pigtail
  • Standard wall plates can be used
  • Designed to accommodate the mounting of switches or other devices in masonry walls 2-1/2 in deep boxes are used in 4 in block walls, 3-1/2 in deep boxes are used in 6 in or 8 in block walls
  • (4) TKO™ end, (5) TKO™ side and (2) TKO™ bottom concentric conduit knockouts
  • Screw-on/Nail-On mounting

Specification

Knockout Size
1/2 and 3/4 in
Material
Steel
Mounting Type
Threaded
Number of Gangs
1
Number of Knockouts
11
Number of Outlets
1
Shape
Rectangular
Type
Gangable
Application
Electrical Applications
Standard & Approvals
UL E195978
Dimensions
3-3/4 in H x 1-15/16 in W x 3-1/2 in D
Cable Entry
Knockouts
Capacity
22.5 cu-in
Color
Silver
Finish
Pre-Galvanized
