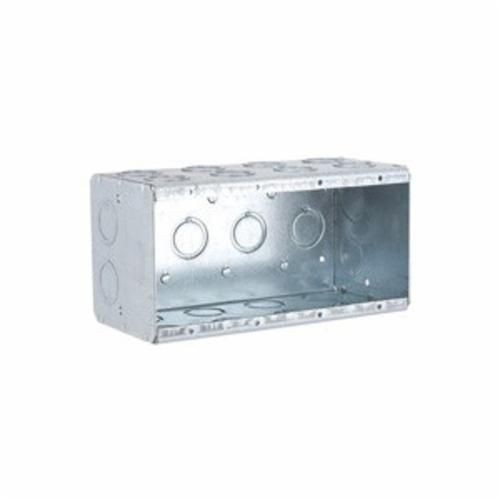

RACO® 698 Non-Gangable Masonry Box, Steel, 89.8 cu-in Capacity, 4 Gangs, 4 Outlets, 34 Knockouts
RACO® 698 Non-Gangable Masonry Box, Steel, 89.8 cu-in Capacity, 4 Gangs, 4 Outlets, 34 Knockouts
SKU: RAC698
Manufacturer Part Number: 698
UPC: 050169006986
Documents
Short Description
Features
- Rugged welded design does not fall apart during construction
- Available from one to six gang configurations in both 2-1/2 in and 3-1/2 in depth
- Rectangular shape fits square cuts in block
- Large volume design allows for additional work room inside the box
- Standard 1/2 in and 3/4 in TKO™ knockouts
- Device ears inside the box prevent mortar from getting in the device holes
- Steel voltage partition No.971 fits all 2-1/2 in or 3-1/2 in depth
- Standard wall plates can be used
- Designed to accommodate the mounting of switches or other devices in masonry walls 2-1/2 in deep boxes are used in 4 in block walls, 3-1/2 in deep boxes are used in 6 in or 8 in block walls
- (16) End, (14) side and (4) bottom concentric conduit knockouts
- Weided construction
- Screw-on/Nail-On mounting
Specification
| Material | Steel |
|---|---|
| Mounting Type | Threaded |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Silver |
| Standard & Approvals | UL E195978 |
| Dimensions | 3-3/4 in H x 7-13/32 in W x 3-1/2 in D |
| Shape | Rectangular |
| Capacity | 89.8 cu-in |
| Knockout Size | 1/2 and 3/4 in |
| Number of Gangs | 4 |
| Number of Knockouts | 34 |
| Number of Outlets | 4 |
| Type | Non-Gangable |
| Catalog ID | RAC698 |
| Cable Entry | Knockouts |
| Finish | Pre-Galvanized |
| Application | Electrical Applications |
