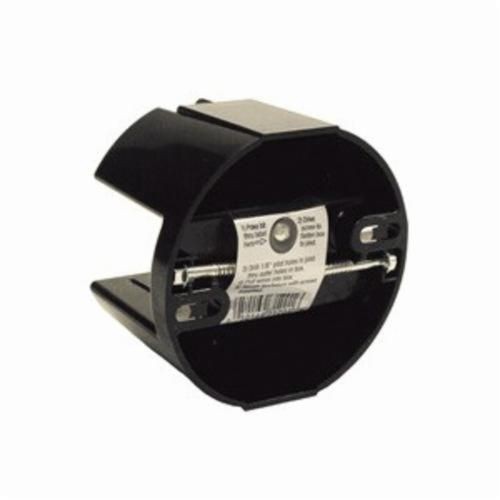

RACO® Saddle Box® 7120-1 Ceiling Fan/Fixture Box, Polycarbonate, 12 cu-in Capacity, 2-5/8 in D

Selected 7120RACO® Saddle Box® 7120-1 Ceiling Fan/Fixture Box, Polycarbonate, 12 cu-in Capacity, 2-5/8 in D
7120RACO® Saddle Box® 7120-1 Ceiling Fan/Fixture Box, Polycarbonate, 12 cu-in Capacity, 2-5/8 in D

Documents

Short Description

Raco® steel ceiling fan support boxes are constructed from one piece of steel and feature unique mounting screws for added durability. these boxes are used for new construction, applications where joists are accessible, or renovation (old work) where joist access is limited.

Features

  • Non-metallic cable boxes provide the installer with a cost alternative that is lightweight and easy to install
  • Self-clamping wire entry clamps
  • Round fixture boxes offer an optional front mounted grounding screw
  • For use wherever fans or lighting canopies are to be installed
  • Provide excellent protection for wiring system or devices
  • Acceptable for use in 2 hr rated walls and ceilings
  • Non-metallic sheathed cable wiring system
  • 4 cable clamp
  • 70 lb ceiling fan, 210 lb fixture
  • 2-5/8 in depth

Specification

Material
Polycarbonate
Minimum Order Qty
1
Order Interval
1
Cable Entry
Clamp
Capacity
12.5 cu-in
Catalog ID
RAC7120-1
Color
Black
Diameter
4 in
Dimensions
2-5/8 in D
Shape
Round
Type
Fan/Fixture
Includes
Mounting Hardware and Instructions
Application
For usedinbranchcircuitwiringtosplicewires, provide excellent protection for wiring system or devices
