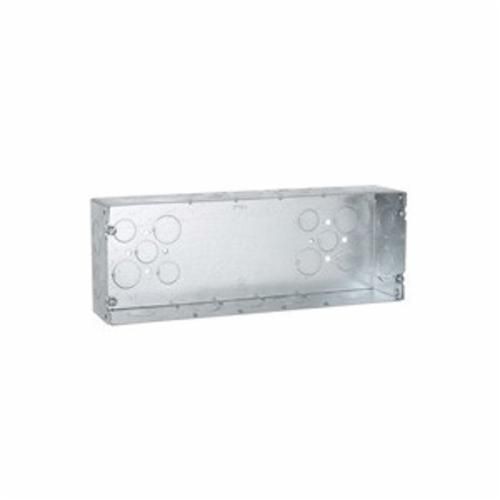

RACO® 944 Gang Box, Steel, 130 cu-in Capacity, 5 Gangs, 24 Knockouts
RACO® 944 Gang Box, Steel, 130 cu-in Capacity, 5 Gangs, 24 Knockouts
SKU: RAC944
Manufacturer Part Number: 944
UPC: 050169009444
Documents
Features
- Gang boxes save time in installation, no need to gang boxes together
- Have 3/4 in and 1 in concentric KO's for use with a wide variety of wiring methods
- Bottom KO pattern, 3-1/2 in and 2-3/4 in at either end of box
- Accepts two styles of covers, flat and 3/4 in raised device cover
- Use low voltage partitions NO 947 or NO 949
- RACO Gang boxes are used where a number of wiring devices are to be centrally located
- Combination cover screw heads provide for faster mud ring, cover installation
- Knockouts: (6) 3/4, (4) 3/4 - 1 in Concentric Top and Bottom, (6) 1/2 in and (4) 3/4 in Back, (4) 3/4 - 1 in Concentric Side
- Welded construction
- Screw-on mounting
Specification
| Material | Steel |
|---|---|
| Color | Silver |
| Number of Gangs | 5 |
| Mounting Type | Threaded |
| Knockout Size | 1/2 and 3/4 in |
| Finish | Pre-Galvanized |
| Number of Knockouts | 24 |
| Standard & Approvals | UL E195978 |
| Cable Entry | Knockouts |
| Capacity | 130 cu-in |
| Dimensions | 4-1/2 in H x 12-1/4 in W x 2-1/2 in D |
| Application | Electrical Applications |
