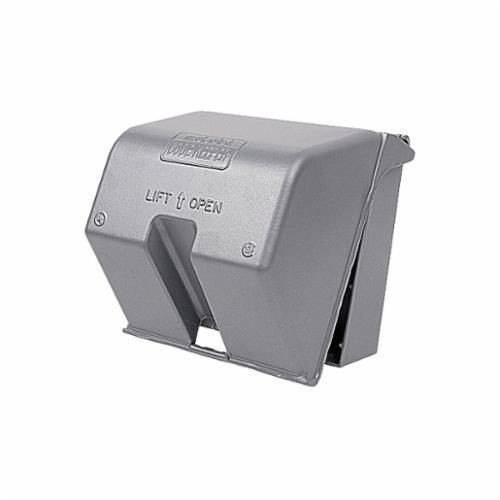

Red Dot® Code Keeper® 2CKU Extra Duty Universal Weatherproof While-In-Use Cover, 4-3/4 in D, Die Cast Aluminum

Selected 2CKURed Dot® Code Keeper® 2CKU Extra Duty Universal Weatherproof While-In-Use Cover, 4-3/4 in D, Die Cast Aluminum
2CKURed Dot® Code Keeper® 2CKU Extra Duty Universal Weatherproof While-In-Use Cover, 4-3/4 in D, Die Cast Aluminum

Documents

Short Description

Red Dot® code Keeper® universal while-in-use covers make it easier than ever to comply with national electrical Code® (NEC) requirements for installing receptacles in wet locations. Preconfigured for GFCI - the industry’s most common configuration - each cover ships with adapter plates to accommodate single or duplex receptacles and switches. now, contractors can handle any application they encounter without needing dozens of different covers.

Features

  • Weatherproof receptacle cover
  • Die-cast metal construction provides long lasting durability
  • Combination box or device mounting design provides flexibility in installation
  • NEMA 3R rating ensures protection against falling rain, sleet and external ice formation when used with appropriate device boxes
  • Clear UL and CSA markings speed approval by inspectors
  • Wide range of cover depths and receptacle configurations accommodate almost every common plug and cord size when combined with included adapter plates
  • Weatherproof
  • Commercial-vending machines, car washes, outdoor signs, restaurant kitchens, greenhouses and nurseries, marinas, garages and lumberyards
  • Industrial-manufacturing areas, food processing, water treatment plants, security cameras, laboratories, wash down areas and loading docks
  • Recreational-Pools and spas, parks, playgrounds, zoos, RV connections, athletic fields, ball parks, stadiums, outdoor stages, amphitheaters and golf courses
  • Complies with national electrical code article 406.8 (b) for unattended in use plugs in wet locations
  • Protects receptacles, switches and plugs for single gang and two-gang configurations in dry and wet locations
  • Durable latching covers prevent accidental equipment disconnects, reduce tampering and deter theft
  • Lockable covers comply with OSHA lockout/tag out requirements
  • Key-hole mounts on back make installation fast and efficient
  • Die-cast aluminum finish
  • Without Knockout

Specification

Material
Aluminum
Mounting Type
Keyhole
Number of Gangs
2
Color
Silver
Finish
Powder Coated
Application
Residential-Holiday and Landscape Lighting, Wells and Sump Pumps, Sprinkler Systems, Plug-In Timers, Garages and Patios
Type
Universal Extra Duty
Includes
(4) Adapters
Depth
4-3/4 in
Standard & Approvals
UL E28688, NEC Section 406.9 (B) (1) and 590.4 (D) (2), RoHS Compliant
