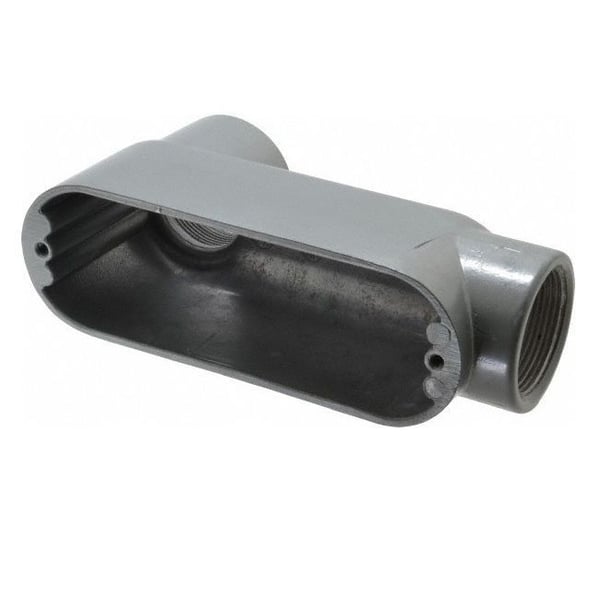

Red Dot® ALB-5 Type LB Conduit Body, 1-1/2 in Hub, 32 cu-in Capacity, Die Cast Aluminum
Red Dot® ALB-5 Type LB Conduit Body, 1-1/2 in Hub, 32 cu-in Capacity, Die Cast Aluminum
SKU: R-DALB-5
Manufacturer Part Number: ALB-5
UPC: 042269318304
Documents
Short Description
Features
- Copper-free aluminum provides increased corrosion resistance
- Precision cast and machined surfaces permit safer wire pulling
- Clean cover edges provide good gasket sealing
- Precision NPT threaded and set screw hubs allow trouble-free field installation for rigid, IMC or EMT conduit
- Retained deep slotted stainless steel cover screws for faster installation
- Clear UL, CSA and cubic content markings speed approval by inspectors
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1, and Steel EMT, NEC 348-1
- 90 deg hub location
- Back access opening
- Provide access for pulling, splicing and maintenance
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
- Die Cast Aluminum
Specification
| Hub Size | 1-1/2 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 32 cu-in |
| Catalog ID | R-DALB-5 |
| Connection Type | Threaded |
| Dimensions | 7-1/4 in L x 7-7/8 in W x 2-1/2 in H |
| Series | ALB |
| Type | Type LB |
| Application | For Rigid/IMC Conduit |
| Standard & Approvals | UL E28688 Listed, CSA Certified, Federal Specification W-C-586, NEC Article 370-28, RoHS Compliant |
