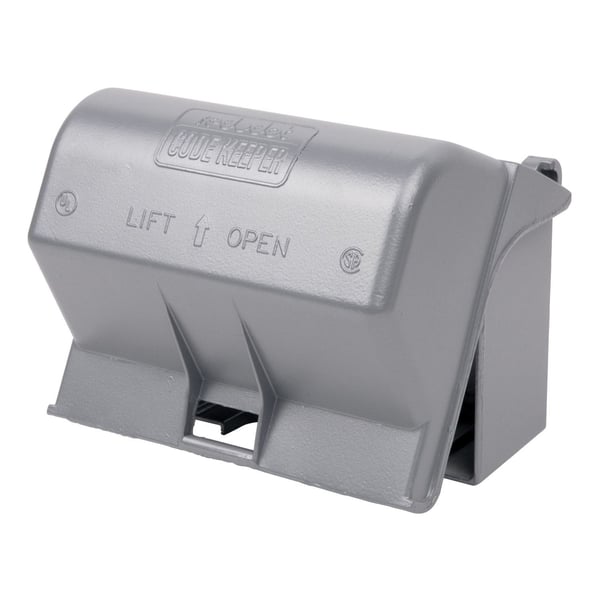

Red Dot® Code Keeper® CKMU Medium Universal Weatherproof While-In-Use Cover, 3-1/4 in D, Die Cast Aluminum

Selected CKMURed Dot® Code Keeper® CKMU Medium Universal Weatherproof While-In-Use Cover, 3-1/4 in D, Die Cast Aluminum
CKMURed Dot® Code Keeper® CKMU Medium Universal Weatherproof While-In-Use Cover, 3-1/4 in D, Die Cast Aluminum

Documents

Short Description

Red Dot® code Keeper® universal while in use covers make it easier than ever to comply with national electrical code (NEC) requirements for installing receptacles in wet locations. Preconfigured for GFCI, the industry's most common configuration each cover ships with adapter plates to accommodate single or duplex receptacles and switches. Now, contractors can handle any application they encounter without needing dozens of different covers.

Features

  • Die cast metal construction provides long lasting durability
  • For use with duplex, GFI, single receptacle and switch
  • Combination box or device mounting design provides flexibility in installation
  • NEMA 3R rating ensures protection against falling rain, sleet and external ice formation when used with appropriate device boxes
  • Clear UL and CSA markings speed approval by inspectors
  • Wide range of cover depth and receptacle configurations accommodate almost every common plug and cord size when combined with included adapter plates
  • Complies with national electrical code article 406.8 (b) for unattended in use plugs in wet locations
  • Protects receptacles, switches and plugs for 1-gang and 2-gang configurations in dry and wet locations
  • Durable latching covers prevent accidental equipment disconnects, reduce tampering and deter theft
  • Lockable covers comply with OSHA lockout/tag out requirements
  • Key hole mounts on back make installation fast and efficient
  • Without knockouts

Specification

Material
Die Cast Aluminum
Mounting Orientation
Horizontal
Mounting Type
Keyhole
Number of Gangs
1
Type
Medium Universal Weatherproof
Application
Residential Holiday, Landscape Lighting, Wells, Sump Pumps, Sprinkler Systems, Plug-In Timers, Garages, Patios, Car Washes, Outdoor Signs, Restaurant Kitchens, Greenhouses, Nurseries, Marinas, Lumberyards, Industrial Manufacturing Areas, Food Processing, Water Treatment Plants, Security Cameras, Laboratories, Loading Docks, Wash Down Areas and Commercial Vending Machines
Standard & Approvals
UL File No. E28688, NEC Section 406.9 (B) (1), 590.4 (D) (2)
Color
Silver
Depth
3-1/4 in
Finish
Powder Coated
Includes
(2) Adapters
