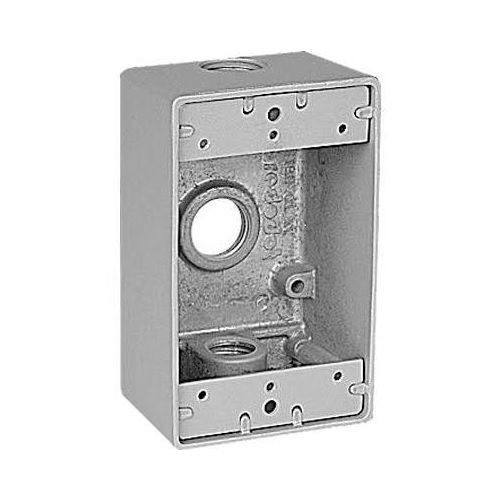

Red Dot® IH3-2-LM Universal Weatherproof Box With Mounting Lug, Die Cast Aluminum, 17.3 cu-in Capacity, 1 Gangs, 5 Outlets, 4-9/16 in H x 2-13/16 in W x 2 in D
Red Dot® IH3-2-LM Universal Weatherproof Box With Mounting Lug, Die Cast Aluminum, 17.3 cu-in Capacity, 1 Gangs, 5 Outlets, 4-9/16 in H x 2-13/16 in W x 2 in D
SKU: R-DIH3-2-LM
Manufacturer Part Number: IH3-2-LM
UPC: 042269392250
Short Description
Features
- Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
- Die-cast construction and industrial design combine to produce a rugged protective enclosure for devices
- Clean cover edges provide good gasket sealing
- Precision cast and machined surfaces permit safer wire pulling
- Clear UL and cubic content markings speed approval by inspectors
- Convenient mounting lugs for a variety of mounting methods
- Securely fastened mounting plates reduce costly call backs
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Junction box for branch conduits
- (1) top knockouts
- (1) bottom knockouts
- (1) back knockouts
Specification
| Hub Size | 3/4 in |
|---|---|
| Material | Die Cast Aluminum |
| Number of Gangs | 1 |
| Number of Outlets | 3 |
| Type | Universal |
| Application | For used to protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations |
| Standard & Approvals | CSA Certified, Federal Specification UL W-C-586, UL Listed |
| Capacity | 17 cu-in |
| Color | Silver |
| Finish | Powder Coated |
| Dimensions | 4-9/16 in H x 2-13/16 in W x 2 in D |
