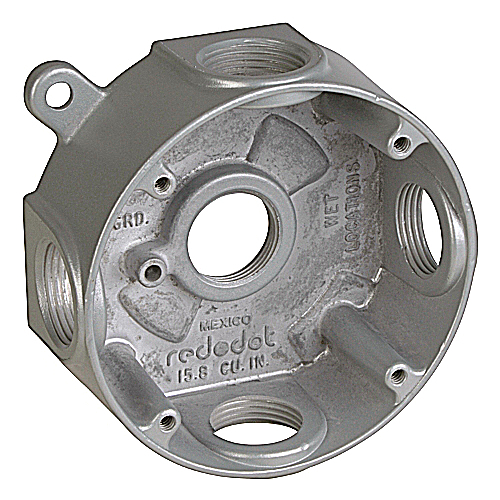

Red Dot® S-48 Device Outlet Box, Die Cast Aluminum, 15.8 cu-in Capacity, 5 Outlets, 1-5/8 in D

Selected Data-Spec SheetRed Dot® S-48 Device Outlet Box, Die Cast Aluminum, 15.8 cu-in Capacity, 5 Outlets, 1-5/8 in D
Data-Spec SheetRed Dot® S-48 Device Outlet Box, Die Cast Aluminum, 15.8 cu-in Capacity, 5 Outlets, 1-5/8 in D

Documents

Short Description

Preferred for more than 50 years, red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

Features

  • Precision cast and machined surfaces permit safer wire pulling
  • Clean cover edges provide good gasket sealing
  • Clear UL and cubic content markings speed approval by inspectors
  • Deep slotted stainless steel cover screws for faster installations
  • Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction box for branch conduits
  • Four on the sides and one in back
  • Mounting lugs, and 4 closure plugs

Specification

Hub Size
3/4 in
Material
Aluminum
Mounting Type
Lugs
Number of Outlets
5
Shape
Round
Type
Outlet
Standard & Approvals
UL E 28688, RoHS Compliant
Dimensions
1-5/8 in D
Capacity
17 cu-in
Color
Silver
Diameter
4-1/8 in
Finish
Aluminum Lacquer
