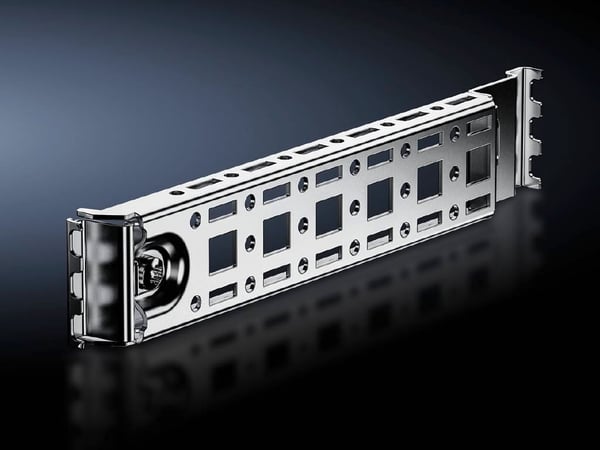

Rittal 2393300 Rail, Carbon Steel

Selected 2393350Rittal 2393350 Rail, Carbon Steel
2393350Rittal 2393350 Rail, Carbon Steel

Documents

Short Description

Mounted in the housing no machining required. Suitable for all-round mounting on the sides base and roof areas. Variable with 2 rows of system punching's provides additional mounting space for system chassis 14 x 39 mm enclosure lights door-operated switch door stay cable conduit holder.

Features

  • Automatic potential equalization
  • Can also be retrofitted with built-in mounting plate
  • Installation using flange (gland) plates possible
  • Compatibility with VX25 system accessories
  • Housing protection category is retained (no machining required)
  • Only one screw needed to secure the rail in the housing

Specification

Material
Carbon Steel
Standard & Approvals
RoHS Compliant
Finish
Zinc Plated
Includes
Adapter
Suitable For Use With
AX Series 300 mm D Interior Installation of Compact Enclosures
Size
274.7 mm L
