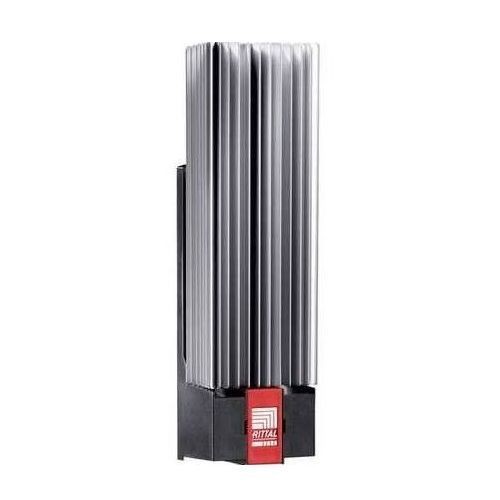

Rittal 3105370 SK Series 1-Phase Radiant Enclosure Heater, 110 to 240 VAC, 4 A, 130 to 150 W Power Rating

Selected 3105370Rittal 3105370 SK Series 1-Phase Radiant Enclosure Heater, 110 to 240 VAC, 4 A, 130 to 150 W Power Rating
3105370Rittal 3105370 SK Series 1-Phase Radiant Enclosure Heater, 110 to 240 VAC, 4 A, 130 to 150 W Power Rating

Documents

Short Description

Enclosure heaters protect your equipment form condensation and corrosion. Rittal heaters are designed to produce the necessary heat, while maintaining their compact and robust black anodized aluminum construction.

Features

  • Panel heaters are the ideal way to regulate the internal conditions of enclosure
  • Advanced PTC technology allows the heater to self-regulate its operation only using energy when required
  • Used in conjunction with available thermostats and hygrostats, humidity, condensation and temperature are all accurately controlled
  • 50/60 Hz frequency, single phase
  • 130 to 150 W continuous thermal output at 10 deg C
  • 3 in depth

Specification

Material
Anodised Aluminum
Mounting Type
35 mm DIN-Rail
Overall Height
7.1 in
Overall Width
3-1/2 in
Series
SK
Type
Radiant
Voltage Rating
110 to 240 VAC
Standard & Approvals
CSA Certified, cUL Listed, UL Listed
Dimensions
7.1 in H x 3.5 in W x 3 in D
Domestic/Import
Import
Finish
Black
Amperage Rating
4 A
Power Rating
130 - 150 W
Includes
PTC Heater, Quick-Connection Terminal, Assembly Parts
