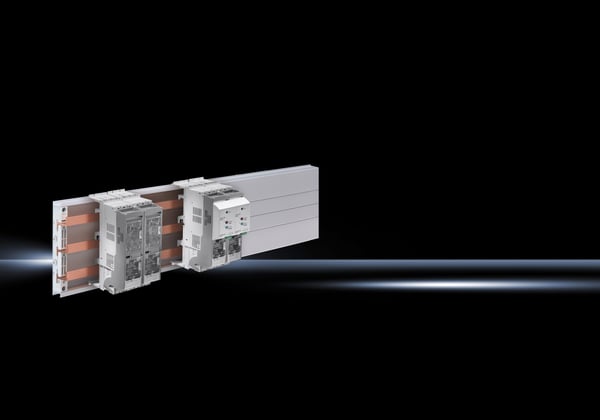

Rittal 3431030 Fuse Switch Disconnector, 690 VAC, 100 A, 3 Poles, NH Fuse, 2.5 to 50 sq-mm Wire
Rittal 3431030 Fuse Switch Disconnector, 690 VAC, 100 A, 3 Poles, NH Fuse, 2.5 to 50 sq-mm Wire
SKU: RTL3431030
Manufacturer Part Number: 3431030
UPC: 639889860780
Documents
Specification
| Voltage Rating | 690 VAC |
|---|---|
| Width | 53 mm |
| Wire Size | 2.5 to 50 sq-mm |
| Wire Type | Copper |
| Application | Power Distribution Applications |
| Standard & Approvals | RoHS Compliant, UL Listed, DIN EN 60 269-2, EC/DIN EN 60 947-3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 100 A |
| Number Of Poles | 3 |
| Operating Temperature | 25 to 55 deg C |
| Material | Fiberglass Reinforced Polyamide |
| Height | 213 mm |
| Fuse Type | NH |
| Fuse Size | Size 000 |
| Catalog ID | RTL3431030 |
