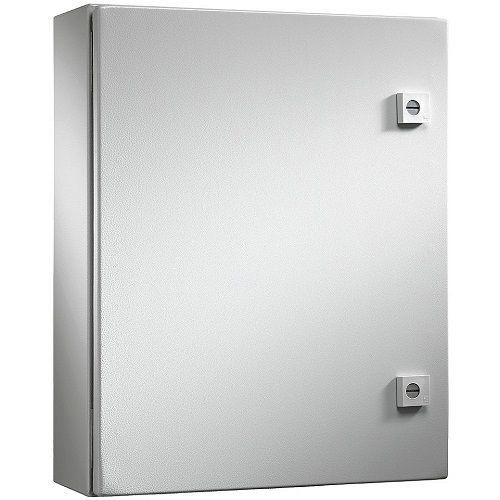

Rittal 8017578 WM Series 1-Door Compact Enclosure, 24 in W x 12 in D, NEMA 4/IP66 NEMA Rating, Carbon Steel
Rittal 8017578 WM Series 1-Door Compact Enclosure, 24 in W x 12 in D, NEMA 4/IP66 NEMA Rating, Carbon Steel
SKU: RTLWM362412NC
Manufacturer Part Number: 8017578
UPC: 639889831551
Documents
Short Description
Features
- One-piece welded cold rolled steel body
- Zinc plated mounting panel included
- Foamed-in-place gasket
- Quick-release hidden 130 deg door hinges
- Electrophoresis dip-coat primer with powder-coat surface
- Flange trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
- Wall-mounting holes
- Powder-coated on the outside, textured paint, zinc-plated mounting plate
- These single door wallmount enclosures can be used for virtually any application
- The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface
- Features include a cold rolled steel body and door, and a zinc plated mounting panel
- Multi-fold single piece body construction
- Stylish, modern design, outstanding strength, stability, protection against contaminates, dust protection
- RAL 7035 light gray
Specification
| Length | 35 in |
|---|---|
| Lock | Slotted Quarter Turn Latch |
| Material | Carbon Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | RTLWM362412NC |
| Color | Light Gray |
| Cover Type | Hidden Hinged |
| Depth | 12 in |
| Finish | Dip Coat Primed |
| Panel Size | 34 x 24 in |
| Series | WM |
| Type | Single Door |
| Width | 24 in |
| Application | Industrial and Plant Floor Environment |
| Standard & Approvals | UL, cUL Listed, RoHS Complaint |
| Insulation | Foamed-In PU Seal |
