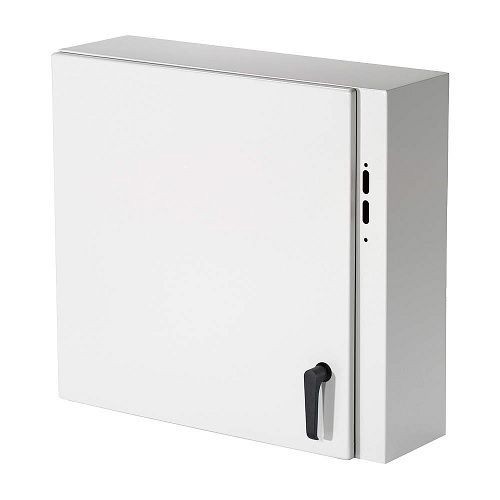

Rittal 8017589 WM Series Compact Enclosure, 975 mm W x 300 mm D, NEMA 4/IP66, Stainless Steel
Rittal 8017589 WM Series Compact Enclosure, 975 mm W x 300 mm D, NEMA 4/IP66, Stainless Steel
SKU: RTLWM483812XC
Manufacturer Part Number: 8017589
UPC: 639889831667
Documents
Short Description
Features
- One-piece welded cold rolled steel body
- Left-hand hinged door (the carbon steel single door configuration is reversible)
- Single door enclosures less than 20 in in height have one 1/4 turn latch with screwdriver insert
- Single door enclosures 20 - 40 in in height have two 1/4-turn latches with screwdriver inserts
- Single door enclosures greater than or equal to 42 in in height have a 3 point latching tool-to-open L-handle
- Double door and disconnect enclosures have a 3 point latching tool-to-open L-handle
- Wallmounting holes (carbon steel versions), blind riv-nuts (stainless steel versions)
- Foamed-in-place gasket
- Slope Top enclosures have a 20 deg sloped roof that overhangs the door
- Zinc plated mounting panel included
- Stainless steel 1.4301 (AISI 304)
- Sheet steel, zinc-plated mounting plate
- Brushed surface
- These flange mount disconnect wallmount enclosures can be used for virtually any application
- The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface
- Features include a cold rolled steel body and door, and a zinc plated mounting panel
- Dipcoat-primed and powder coated, textured paint
- RAL 7035 light gray
Specification
| Length | 1200 mm |
|---|---|
| Lock | 3-Point Latch L-Handle |
| Material | Stainless Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Light Gray |
| Cover Type | Hinged |
| Finish | Dip Coat Primed |
| Series | WM |
| Application | For industrial use |
| Standard & Approvals | UL, cUL Listed, RoHS Complaint |
| Insulation | Foamed-In PU Seal |
| Catalog ID | RTLWM483812XC |
| Width | 975 mm |
| Panel Size | 45 x 33 in |
| Depth | 300 mm |
