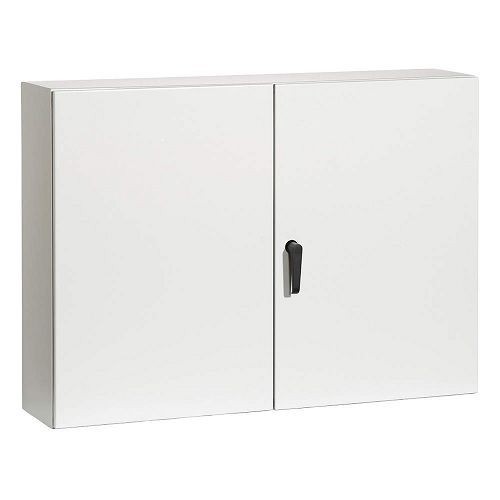

Rittal 8017590 WM Series 2-Door Compact Enclosure, 47 in W x 12 in D, NEMA 12/IP55, Carbon Steel
Rittal 8017590 WM Series 2-Door Compact Enclosure, 47 in W x 12 in D, NEMA 12/IP55, Carbon Steel
SKU: RTLWM484812NC
Manufacturer Part Number: 8017590
UPC: 639889831674
Documents
Short Description
Features
- One-piece welded cold rolled steel body
- Zinc plated mounting panel included
- Foamed-in-place gasket
- Quick-release hidden 130 deg door hinges
- Electrophoresis dip-coat primer with powder-coat surface
- Flange trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
- Wall-mounting holes
- Powder-coated on the outside, textured paint, zinc-plated mounting plate
- These double door wallmount enclosures can be used for virtually any application
- The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface
- Features include a cold rolled steel body and door, and a zinc plated mounting panel
- Multi-fold single piece body construction
- Stylish, modern design, outstanding strength, stability, protection against contaminates, dust protection
- RAL 7035 light gray
Specification
| Length | 47 in |
|---|---|
| Lock | 3-Point Latch L-Handle |
| Material | Carbon Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 12 |
| Panel Size | 45 x 45 in |
| Series | WM |
| Type | Two Door |
| Width | 47 in |
| Application | Industrial and Plant Floor Environment |
| Standard & Approvals | UL, cUL Listed, RoHS Complaint |
| Color | Light Gray |
| Cover Type | Hidden Hinged |
| Depth | 12 in |
| Finish | Dip Coat Primed |
| Insulation | Foamed-In PU Seal |
