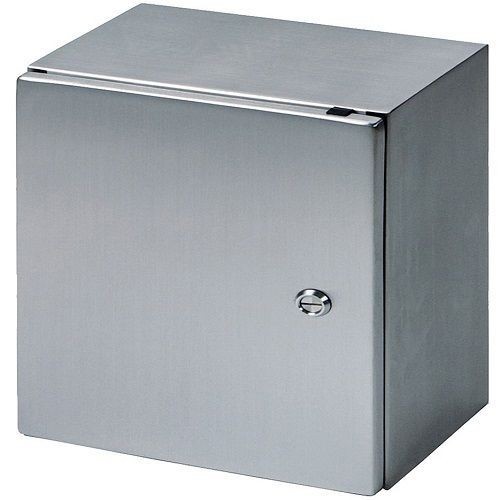

Rittal 8017610 WM Series 1-Door Compact Enclosure, 16 in W x 5.9 in D, NEMA 4X NEMA Rating, 304 Stainless Steel
Rittal 8017610 WM Series 1-Door Compact Enclosure, 16 in W x 5.9 in D, NEMA 4X NEMA Rating, 304 Stainless Steel
SKU: RTLWM161606N4
Manufacturer Part Number: 8017610
UPC: 639889831865
Documents
Short Description
Features
- One-piece welded cold rolled steel body
- Left-hand hinged door (the carbon steel single door configuration is reversible)
- Single door enclosures less than 20 in in height have one 1/4 turn latch with screwdriver insert
- Single door enclosures 20 - 40 in in height have two 1/4-turn latches with screwdriver inserts
- Single door enclosures greater than or equal to 42 in in height have a 3 point latching tool-to-open L-handle
- Double door and disconnect enclosures have a 3 point latching tool-to-open L-handle
- Wallmounting holes (carbon steel versions), blind riv-nuts (stainless steel versions)
- Foamed-in-place gasket
- Slope Top enclosures have a 20 deg sloped roof that overhangs the door
- Zinc plated mounting panel included
- Stainless steel 1.4301 (AISI 304)
- Sheet steel, zinc-plated mounting plate
- Brushed surface
- These single door wallmount enclosures can be used for virtually any application
- The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface
- Features include a stainless steel body and door, and a zinc plated mounting panel
- NO 4 smooth brushed finish
Specification
| Length | 16 in |
|---|---|
| Lock | Quarter Turn Latch |
| Material | 304 Stainless Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4X |
| Panel Size | 15 x 14 in |
| Series | WM |
| Type | Single Door |
| Width | 16 in |
| Application | For industrial use |
| Standard & Approvals | cUL and UL Listed, RoHS Complaint |
| Cover Type | Hinged |
| Depth | 5.9 in |
| Finish | Brushed |
| Insulation | Foamed-In PU Seal |
