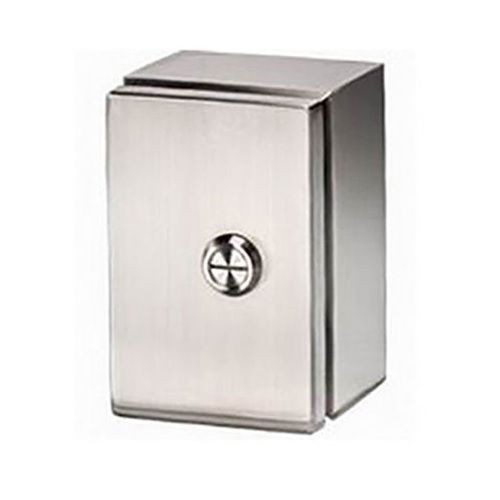

Rittal 8018156 JB Series 1-Door Junction Box, 11.8 in H x 9.8 in W x 5.9 in D, Hinged Cover, NEMA 1/12/3R/4X/IP66 NEMA Rating, 316 Stainless Steel
Rittal 8018156 JB Series 1-Door Junction Box, 11.8 in H x 9.8 in W x 5.9 in D, Hinged Cover, NEMA 1/12/3R/4X/IP66 NEMA Rating, 316 Stainless Steel
SKU: RTLJB121006H6
Manufacturer Part Number: 8018156
UPC: 639889833036
Features
- The JB enclosure offers protection for dense wiring and sensitive small instruments
- These hinged cover junction boxes combine the advantages of the AE and KL series at an economical cost
- Features include 180 degree hinge and slotted insert quarter turn latch
- Foamed-in-place gasket and a knife-edge perimeter add extra protection
- Left door catch
- 1.5 mm housing, door and mounting plate thickness
- Zinc plated mounting plate
- Powder coated on the outside, textured paint surface finish
- Standard 180 deg hinges and locks with screwdriver inserts
- No.4 brushed, grain 240 finish
- RAL 7035 light gray
Specification
| Insulation | Foamed-In PU Seal |
|---|---|
| Length | 11.8 in |
| Lock | Quarter Turn Latch |
| Material | 316 Stainless Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 1/12/3R/4X/IP66 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | RTLJB121006H6 |
| Color | Light Gray |
| Cover Type | Hinged |
| Depth | 5.9 in |
| Finish | Brushed |
| Series | JB |
| Type | One-Door |
| Width | 9.8 in |
| Application | Industrial |
| Standard & Approvals | UL, cUL Listed |
| Includes | Enclosure With Door(s), L/h Door |
