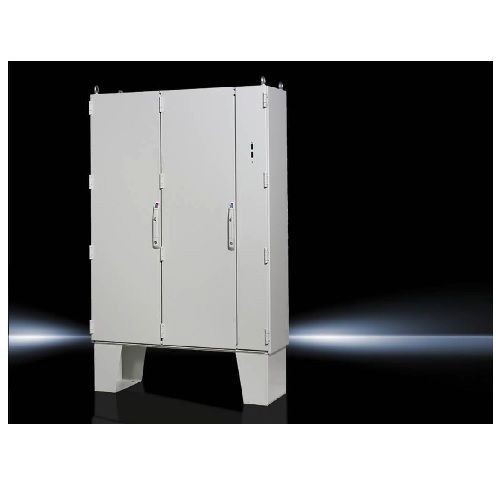

Rittal 8018808 TS 8 Free Stand Disconnect Enclosure, 63 in L x 47.2 in W x 15.7 in D, NEMA 12, Carbon Steel
Rittal 8018808 TS 8 Free Stand Disconnect Enclosure, 63 in L x 47.2 in W x 15.7 in D, NEMA 12, Carbon Steel
SKU: RTL8018808
Manufacturer Part Number: 8018808
UPC: 639889855519
Features
- 1.5 mm sheet steel enclosure frame, roof, gland plates, rear panel, 2 mm door, 3 mm mounting plate
- 130 deg hinge, padlockable handle
- 16-fold frame with removable centre mullion
- Doors with foamed-in-place polyurethane gasket and 180 degree hinges
- 4-pt locking system
- Padlocking comfort handle with screwdriver insert
- Trim panel with swing levers top and bottom and universal cutout for disconnect handle
- Roof, base pan, sidewalls and rear wall
- Floor stands
- Frame dipcoat-primed
- 14 ga door, trim panel, roof, sidewalls and rear wall(s)
- 11 ga floor stands, mounting panel
- Dipcoat-primed, powder coated in textured RAL 7035 (light gray) door, trim panel, roof, base pan, rear wall, sidewalls and floor stands
Specification
| Material | Carbon Steel |
|---|---|
| Mounting Type | Floor |
| NEMA Rating | NEMA 12 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Finish | Powder Coated |
| Series | TS 8 |
| Type | Free Stand |
| Width | 47.2 in |
| Catalog ID | RTL8018808 |
| Includes | Mounting Panel, 8611.310 Handle Interlocking Kit |
| Standard & Approvals | UL Type 12, RoHS Compliant |
| Depth | 15.7 in |
| Cover Type | Hinged |
| Color | Light Gray |
| Lock | 4-Point Lock |
| Length | 63 in |
