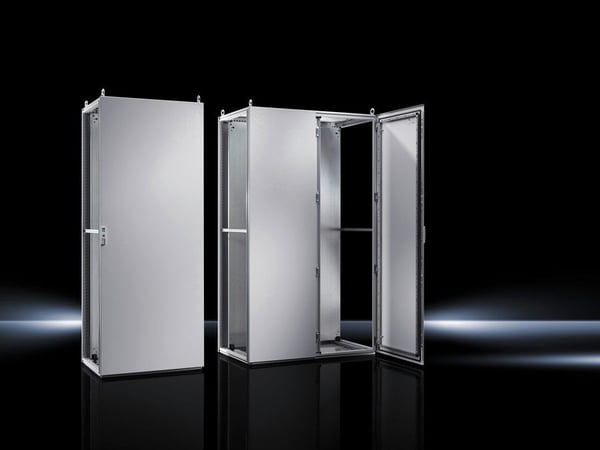

Rittal 8225500 TS/TS8 Compact Baying Enclosure System With Double Door, 47 in W x 20 in D, NEMA 12/IP55 NEMA Rating, Carbon Steel

Selected Rittal 9977520
Rittal 9977520

Documents

Short Description

Ingeniously simple, fully symmetrical and patented worldwide - that is the secret behind a successful design principle which has been sold more than 10 million times for use in all industries and applications. The TS 8 enclosure system has established a new universal standard, raising the bar across all sectors.

Features

  • Full flexibility with the use of accessories, thanks to a fully symmetrical frame section, with identical accessories for the width and depth
  • High protection category of up to IP66 NEMA 4/4X
  • Bayable on all sides
  • Door hinge is easily swapped to the opposite side without machining
  • Automatic potential equalization via the assembly components with all enclosure panels and gland plates
  • Enclosure has a high load bearing capacity of up to 1400 kg
  • Simple, fast assembly of the mounting plate
  • Slide rails may be removed and installed in the side frame section
  • Effective space utilization by using the inner and outer mounting level of the frame section
  • The integral enclosure protection channel prevents the ingress of dirt and water when the door is opened
  • Maximum space for cable entry with multiple divided gland plates
  • Optimum sealing, 4-point lock system
  • 16-fold tubular frame system, flexible baying options and modular design

Specification

Width
47 in
NEMA Rating
NEMA 12/IP55
Lock
4-Point
Depth
20 in
Material
Carbon Steel
Finish
Dipcoat Primed/Powder Coated
Capacity
1400 kg
Type
Compact
Color
Light Gray
Mounting Type
Freestanding
Series
TS/TS8
