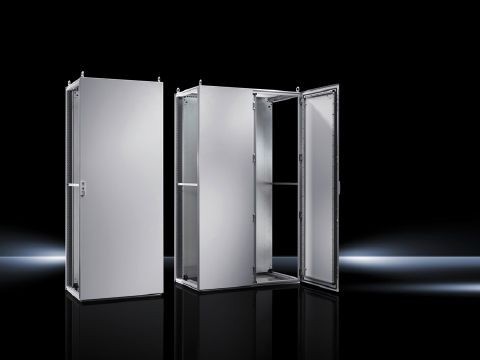

Rittal 8804500 TS 8 1-Door Baying System Enclosure, 31 in W x 16 in D x 79 in H, NEMA 12/IP55, Carbon Steel
Rittal 8804500 TS 8 1-Door Baying System Enclosure, 31 in W x 16 in D x 79 in H, NEMA 12/IP55, Carbon Steel
SKU: RTL8804500
Manufacturer Part Number: 8804500
UPC: 639889380721
Short Description
Features
- Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation
- It also allows a baying arrangement on all sides
- In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety
- RAL 7035 light gray color
- 1.5 mm THK carbon steel enclosure frame, 1.5 mm THK carbon steel roof, 2 mm carbon steel door, 1.5 mm carbon steel rear wall, 1.5 mm carbon steel base plates, 3 mm carbon steel mounting plate
- Dipcoat primed enclosure frame, door, roof and rear panel, powder-coated on the outside, textured paint, zinc-plated mounting plate and base plates
- 75 in H x 28 in W mounting plate
Specification
| Series | TS 8 |
|---|---|
| Type | 1-Door |
| Standard & Approvals | cULus Listed, CSA Certified, TUV Approved |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 1500 lb |
| Color | Light Gray |
| Cover Type | Hinged |
| Finish | Powder Coated |
| Height | 79 in |
| Lock | 3 mm Double Bit |
| Material | Carbon Steel |
| Mounting Type | Floor |
| NEMA Rating | NEMA 12/IP55 |
| Depth | 16 in |
| Catalog ID | RTL8804500 |
| Width | 31 in |
| Includes | Enclosure Frame with Door, Roof Plate, Rear Panel, Base Plates, Mounting Plate, 3 mm Double Bit Lock, (2) 18 x 38 mm TS Punched Rails and (4) Eyebolts |
