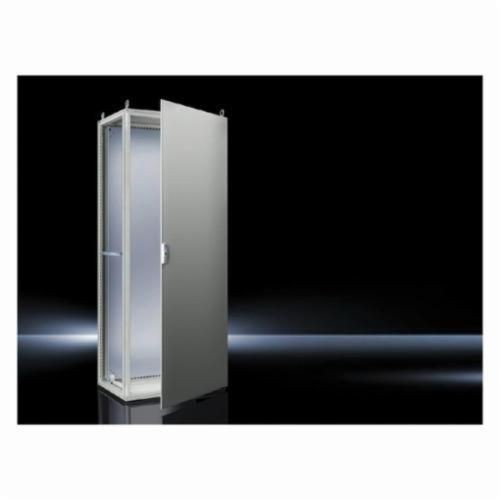

Rittal 8805500 TS 8 1-Door Compact Enclosure, 32 in W x 20 in D x 79 in H, NEMA 12/IP55, Sheet Steel
Rittal 8805500 TS 8 1-Door Compact Enclosure, 32 in W x 20 in D x 79 in H, NEMA 12/IP55, Sheet Steel
SKU: RTL8805500
Manufacturer Part Number: 8805500
UPC: 639889380745
Documents
Features
- 16-fold tubular frame system, flexible baying options, modular design
- 1.5 mm roof/enclosure frame, 2 mm door, 1.5 mm rear panel sheet steel
- Dipcoat primed enclosure frame
- Dipcoat primed, powder coated on the outside, textured paint door, roof and rear panel
- Right hand door catch on single door enclosures may be swapped to the left
- RAL 7035 light gray
Specification
| Length | 79 in |
|---|---|
| Lock | 3 mm Double-Bit |
| Material | Steel |
| Mounting Type | Floor |
| NEMA Rating | NEMA 12/IP55 |
| Series | TS 8 |
| Type | Single Door Free Stand |
| Width | 32 in |
| Application | Industrial, Data Center, Outdoor, Hybrid |
| Standard & Approvals | UL Listed, CSA, TUV, Norske Veritas, Germanischer Lloyd, Russian Maritime Register of Shipping, Lloyds Register of Shipping, Bureau Veritas, VDE, RoHS Complaint |
| Color | Light Gray |
| Cover Type | Continuous Hinged |
| Depth | 20 in |
| Finish | Powder Coated |
| Includes | Enclosure Frame, Door, Roof Plate, Rear Panel, Detachable, 4 Eyebolts, 3 mm Double Bit Lock |
