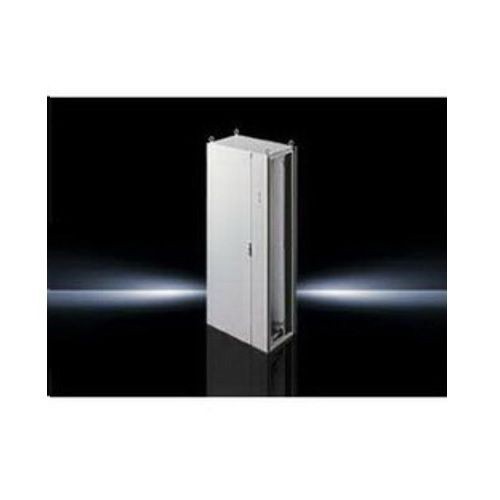

Rittal 8906500 TS 8 1-Door Enclosure, 800 mm W x 600 mm D x 2000 mm H, NEMA 12, Carbon Steel

Selected Rittal 8906500 TS 8 1-Door Enclosure, 800 mm W x 600 mm D x 2000 mm H, NEMA 12, Carbon Steel
Rittal 8906500 TS 8 1-Door Enclosure, 800 mm W x 600 mm D x 2000 mm H, NEMA 12, Carbon Steel

Short Description

The industry's best, most sought after enclosures and accessories are now available as part of the industry's best support program. RittalXpress features an extensive stocking program, a custom modification program and fast and efficient shipping.

Features

  • The modular design allows for efficient system updates, flexible baying options and virtually endless configurations, all based on a robust 16 fold tubular frame system
  • The frame can hold weight loads up to 1500 lb on the mounting panel and features multi-level mounting capability for unsurpassed flexibility
  • The 25 mm hole pattern allows components and accessories to be mounted in three directions by height, width and depth - which provides maximum space utilization (up to 30% more available space than traditional NEMA style enclosures of equal dimension)
  • The door is strengthened with an attached frame which includes holes on a 25 mm pitch pattern for the attachment of ducts, cable harnesses, wiring plan pockets and much more
  • The gasketed roof is secured with removable eyebolts that screw directly to the enclosure frame to seal out dirt and moisture
  • IP55 degree of protection

Specification

Length
79 in
Material
Steel
Mounting Type
Floor
Panel Size
75 in H x 28 in W
Series
TS 8
Type
1-Door
Width
800 mm
Standard & Approvals
UL E76083, cULus Listed
Depth
24 in
